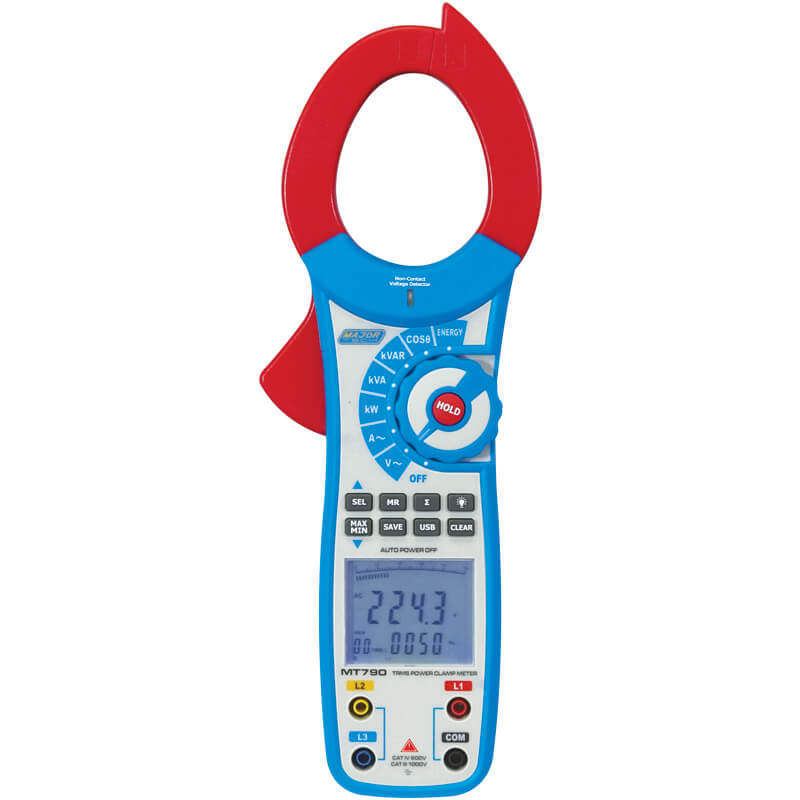

The MT790 is a Single and 3-Phase 1000 Amp True RMS AC Power Clamp Meter. This Power Clamp meter operates as a True RMS Clamp Meter, Power Meter, Multimeter and AC Voltage Detector. Measuring ranges include AC Current, Voltage, Frequency and Power including True Power, Apparent Power, Reactive Power and Active Power. Measures 1-Phase and balanced 3-Phase True Power (kW), Apparent Power (kVA), Reactive Power (kVAR) and Active Power (kWh), plus Power Factor and Phase Angle. Manually stores and recalls up to 99 data logs. USB interface for connection to a PC for data logging function with included software.
Specifications:
| Function | Range | Resolution | Accuracy |
| AC Current | 0.1A – 1000A | 0.1A | ±(2.0% + 5 Digits) |
| AC Voltage | 0.1V – 750V | 0.1V | ±(1.2% + 5 Digits) |
| Frequency | 1Hz – 200Hz | 1.0Hz | ±(0.5% + 5 Digits) |
| Temperature | -50 to 1300°C | 1°C | ±(5.0°C + 3°C Digits) |
| Active Power | 0,01kW – 750,0kW | <1000KW:0.01KW,100KW:0.1KW | ±(3.0% + 5 Digits) |
| Apparent Power | 0.01kVAr – 750.0kVAr | <1000KVAr:0.01KVAr, 100KVAr:0.1KVAr | ±(3.0% + 5 Digits) |
| Reactive Power | 0.01kVAr – 750.0kVAr | <1000KVA:0.01KVA, 100KVA:0.1KVA | ±(4.0% + 5 Digits) |
| Power Factor | 0.3-1 cap or ind. | 0.001 | ±(2% +20) |
| Phase Angle | 0°-90° | 1° | ±(2.0°) |
| Active Energy | 1-9999kWh | 0.001kWh | ±(3.0% + 2 Digits) |
| True RMS Measurements | ACV, ACA | ||
| AC Bandwidth | 50Hz to 60Hz | ||
| Digital Display | 9999 | ||
| Bargraph | Yes | ||
| PC Interface | Yes | ||
| Records Events and Trends | Yes | ||
| Data Logging | Yes | ||
| Non-Contact Voltage (NCV) | Yes | ||
| Overrange Indication | Yes | ||
| Jaw Size | 55mm | ||
| Input Impedance | >10MΩ VAC | ||
| Min Max | Yes | ||
| Back Light | Yes | ||
| Enclosure | Injection moulded case | ||
| Low Battery Indication | Yes | ||
| Battery | 9V | ||
| Weight | 631g | ||
| Dimensions | 335 x 70 x 21mm | ||
| Safety Specs | IEC61010-1 CAT IV 600V | ||
Accessories:
- Soft Carrying Case
- 9V Battery
- Yellow, Red, Blue & Black Test Leads
- Instruction Manual
- USB Cable
- Crocodile Clips
Optional Accessories:
MT825 Test Lead Light
