Description
Details

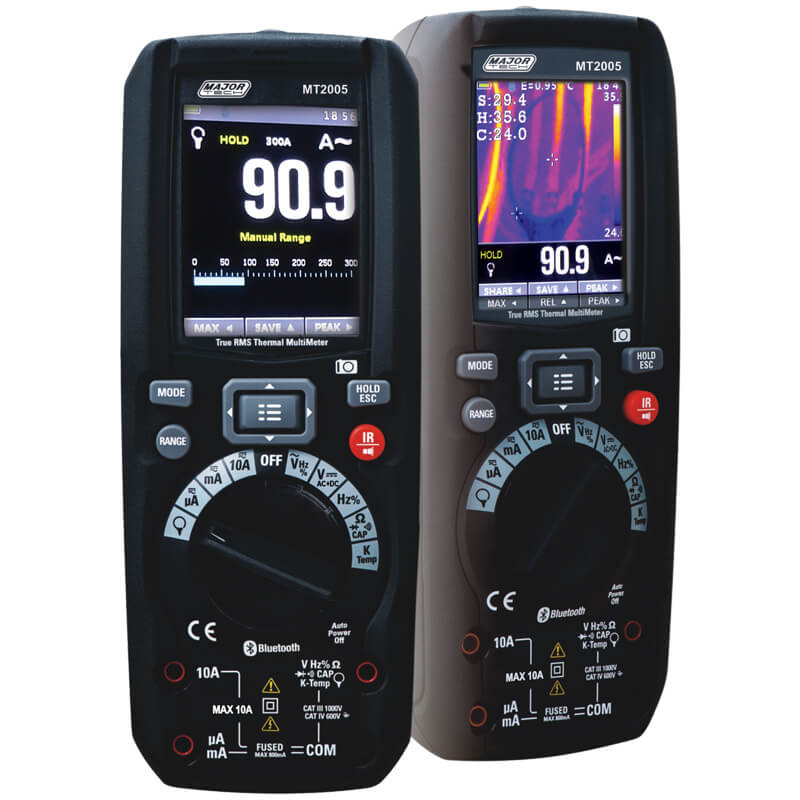

The MT2005 Professional True RMS Industrial Digital Multimeter with a built-in 120 x 120 Pixel Thermal Imager and TFT colour LCD display, provides fast A/D converting sampling time, with high accuracy. It is a fast and easy solution to find and solve problems with production equipment, providing Bluetooth BLE technology. It is a safe instrument with double moulded rubber housing and has an IP65 waterproof rating.
Specifications:
| Function | Range | Resolution | Accuracy |
| Multimeter Function | |||
| DC voltage | 0.1mV – 1000V | 0.1mV | ± (0.09% + 5 Digits) |
| AC voltage | 0.001V – 1000V | 0.1mV | ± (0.8% + 5 Digits) |
| AC + DC TRMS voltage | 0.001V – 1000V | 0.001V | ± (2.4% + 20 Digits) |
| DC Current | 0.1μA – 10A | 0.1μA | ± (0.9% + 5 Digits) |
| AC Current | 0.1μA – 10A | 0.1μA | ± (01.2% + 5 Digits) |
| Flexi Coil AC Current | 0.01A – 3000A | 0.01A | ± (0.8% + 5 Digits) |
| Duty Cycle | 5.0% to 95.0% | 0,001 | ± (1.2% + 2 Digits) |
| Resistance | 0.1Ω – 60MΩ | 0.1Ω | ± (0.5% + 5 Digits) |
| Frequency | 0.01Hz – 10MHz | 0.01Hz | ± (0.09% + 5 Digits) |
| Capacitance | 0.01mF – 6000μF | 0.01nF | ± (1.2% + 8 Digits) |
| Temperature | -40 – 600°C | 0.1°C | ±(1.5% +3°C) |
| Continuity | Yes | ||
| Diode test | Yes | ||
| True RMS Measurements | AC, AC+DC | ||
| AC Bandwidth | 50Hz to 100KHz | ||
| Digital Display | 6000 count 2,8″ TFT | ||
| Bargraph | Yes | ||
| Enclosure | Double injection IP65 | ||
| Bluetooth | BLE 4.0 | ||
| Records events and Trends | Yes | ||
| Data logging | Yes | ||
| Thermal Imaging Functions | |||
| Thermal Measurement | |||
| Temperature | -20°C – 260°C | ±(1.5% +3°C) | |
| Imaging and Optical Data | |||
| Field of View | 21° x 21°/0.5m | ||
| Spatial resolution (IFOV) | 4.53mrad | ||
| Thermal sensitivity/NETD | <0.1°C @ +30°C/100mK | ||
| Image Range | 50Hz | ||
| Focus mode | Focus free | ||
| Zoom | 1 x 32 x continuous, digital zoom | ||
| Focal Length | 7.5mm | ||
| Focal Plane Array (FPA) / Spectral range | uncooled microbolometer / 8-14μm | ||
| IR Resolution | 120 x 120 pixels | ||
| Image Presentation | |||
| Display | 2.8″ LCD, 240 x 320 pixels | ||
| Image Modes | IR Image, Visual image | ||
| Colour Palettes | Iron, rainbow, rainbow HC, grey, grey inverted | ||
| Measurement analysis | |||
| Spot | Centre spot | ||
| Automatic hot/cold detection | Hot or cold markers | ||
| Emissivity correction | Variable 0.01 to 0.99 | ||
| Measurement corrections | Emissivity, reflected temperature | ||
| Data Communications Interfaces | |||
| Interfaces | Bluetooth BLE | ||
