Description
Details

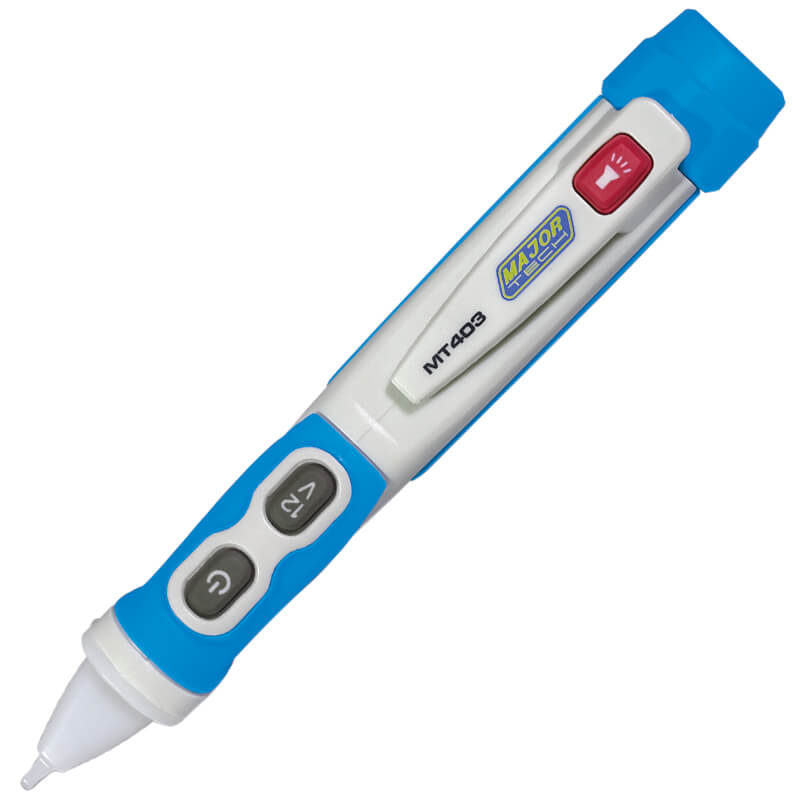

The MT403 is a 1000V NCV Detector with dual ranges, a low measuring range down to 12 volts and a high measuring range from 12V to 1000V. Suitable for outlets or against wire insulation testing, this non-contact AC Voltage Detector has a switch to turn the unit on and a Green LED indicates it is working. There is a Red LED and an audible sound to indicate the presence of voltage. There is a bright built-in LED flashlight ideal for use in dimly lit areas.
Specifications:
| Function | Range |
| Power On Indicator | Green LED |
| Flashlight | LED |
| Non-Contact Voltage (NCV) | Yes |
| AC Voltage | 12V – 1000V |
| Frequency | 50/60Hz |
| Voltage Detector 100V -1000V | Red LED audible beep |
| Voltage Detector 12V -1000V | Yellow then Red LED audible beep |
| Voltage Detector Audible | Continuous Beep |
| Enclosure | Moulded case |
| Low Battery Indication | Beep 3 times, switch off |
| Batteries | 2 x AAA |
| Weight | 55g |
| Dimensions | 160 x 23 x 25mm |
| Safety Specs | IEC61010-1 CAT IV 1000V |
Accessories:
- 2 x AAA Batteries
- Instruction Manual
