Description
Details

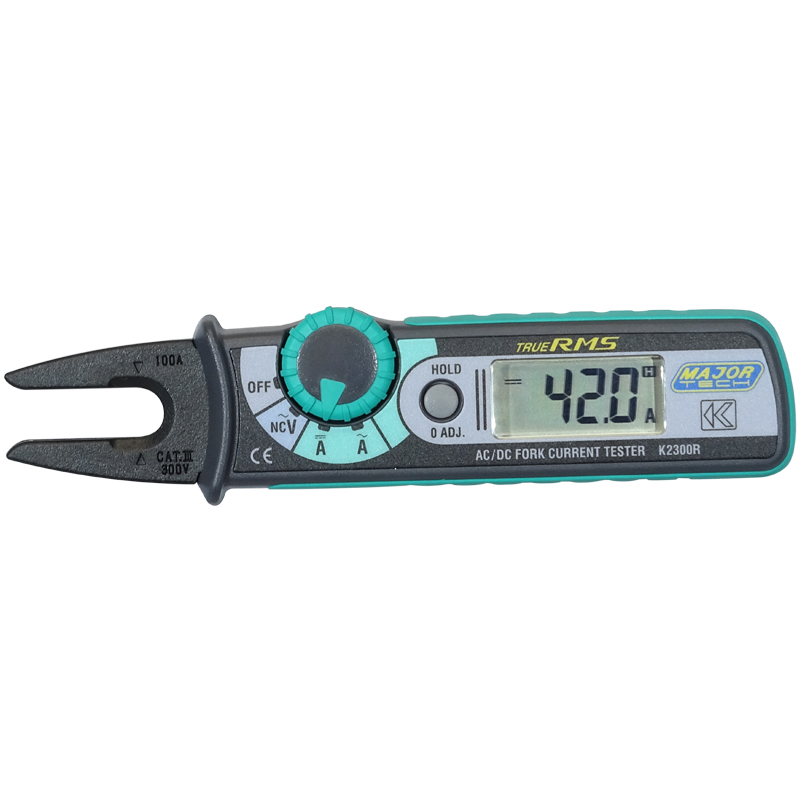

The K2300R is a 100A AC/DC Open Jaw Clamp Meter, with a clamp jaw opening of 10mm. This open jaw clamp meter is designed to assist in the ease of measuring current in crowded or tight cable areas, as the jaws need only be pushed over the wire to obtain accurate readings. The meter has a Non-Contact Voltage detection, diode and is housed in a rugged design for heavy duty use.
Specifications:
| Function | Range | Resolution | Accuracy |
| DC Current | 0.1A – 100A | 0.1A | ± (2.0% + 5 Digits) |
| AC Current | 0.1A – 100A | 0.1A | ± (2.0% + 5 Digits) |
| AC Bandwidth | 40Hz to 400Hz | ||
| Digital Display | 1049 | ||
| Non-Contact Voltage (NCV) | Yes | ||
| Overrange indication | Yes | ||
| Jaw size | 10mm Open Jaw | ||
| Data Hold | Yes | ||
| Enclosure | Double moulded case | ||
| Low battery indication | Yes | ||
| Power source | 2 x R03 | ||
| Weight | 110g | ||
| Safety Specs | IEC61010-1 CatIII 300V | ||
Accessories:
- Carrying Case
- AA Batteries
- Instruction Manual
- COC
