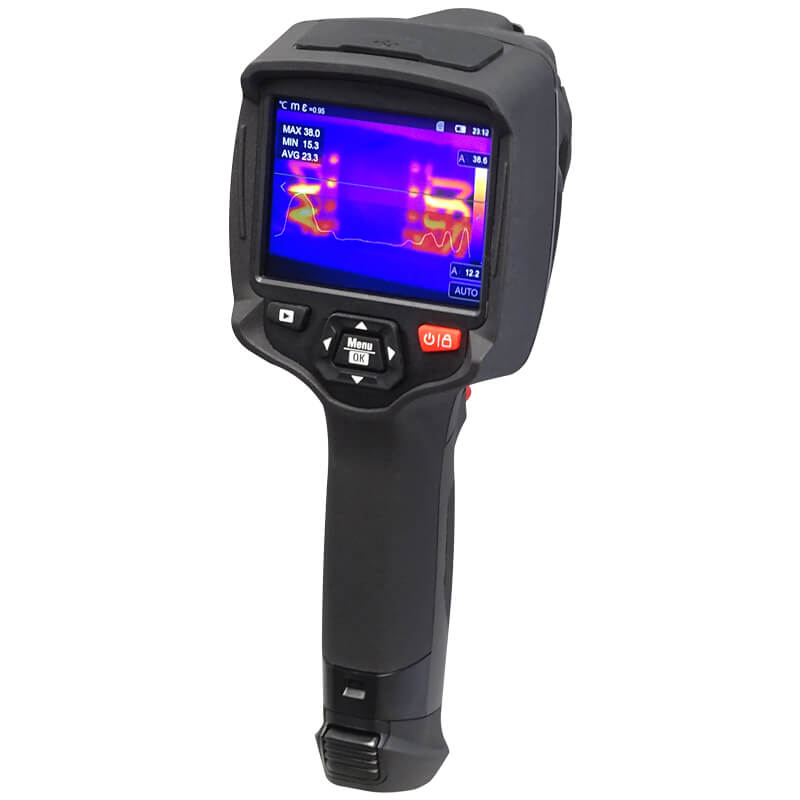

The MTi15 160 x 120 pixels Thermal Imager is the ideal meter for clear and accurate thermal analysis of electrical panels, motors, compressor lines and HVAC applications, the Wi-Fi enabled MTi15 Thermal Imager allows the user to transfer images and stream live video to PC or a smart device. With a 160 x 120 pix resolution at 50Hz, touch screen and manual focus, this lightweight thermal imager offers real-time detection of thermal issues effectively and is ideal for plant and maintenance electricians as well as HVAC installers. This Thermal Imager has a temperature range from -20°C to 650°C, 16x digital zoom, picture-in-picture, thermal fusion, 3 Hot/Cold spot marker, 3 Area and 2 line analysis options that are available on the 3.5” touch screen from which data can be easily transferred.
Specifications:
| Function | Range |
| Imaging and Optical Data | |
| Field of View | 20.7° x 15.6° /0.5m |
| Spatial Resolution (IFOV) | 1.88mrad |
| Thermal Sensitivity/NETD | <0.05° at 30°C (86°F)/50mK |
| Image Range | 50Hz |
| Focus Mode | Manual |
| Zoom | 1 x 32 x continuous, digital zoom |
| Focal Length | 9mm |
| Focal Plane Array (FPA) / Spectral Range | Uncooled microbolometer / 8-14μm |
| IR Resolution | 160 x 120 |
| Image Presentation | |
| Display | 3.5″ LCD, 640 x 480 pixels |
| Image Modes | IR Image, Pic-in Pic, Visual image, Fusion |
| Picture in Picture | IR area on visual image or visual image on IR |
| Colour Palettes | Iron, Rainbow, Grey, Grey inverted, Brown, Blue/Red, Hot/Cold, Feather, Above, Below & Zone Alarm |
| Measurement | |
| Temperature Range | Low -20°C to 150°C, High 0°C to 650°C |
| Temperature Accuracy | ± (2°C or ± 2%) |
| Measurement Analysis | |
| Spot | Centre spot, 3 Adjustable Spots |
| Line | 2 lines (horizontal or vertical) |
| Area | 3 Area with max/min/average |
| Automatic Hot/Cold detection | Auto hot or cold markers |
| Emissivity Correction | Variable 0.01 to 1.0, Standard Emissivity Table |
| Measurement Corrections | Emissivity, Reflective temp, Ambient temp, Distance compensation, Relative humidity, Infrared compensation |
| Storage | |
| Videos | 4Gbytes Micro SD card |
| Videos Format | Standard MPEG-4 encode, 640×480 at 30fps, on memory card >60 minutes |
| Videos Storage Mode | IR/Visual images: simultaneous storage of IR and visual images |
| Images Format | Standard JPEG, or HIR files including measurement data, on memory card >6000 pictures |
| Image Storage Mode | IR/Visual images: simultaneous storage of IR and visual images |
| Digital Camera | |
| Built-in | 2 Megapixels |
| Built-in Digital Lens Data | FOV 65° |
| Data Communications Interfaces | |
| Interfaces | USB-Type C |
| USB | Data and Live Video transform between camera and PC |
| Wi-Fi | 802.11, image transfer and live video |
| Enclosure | Over moulded casing |
| Input System | DC 5V |
| Power Source | Lithium-ion, 4 hours operating time |
| Charging System | In camera (AC adapter) |
| Weight | 534g |
| Dimensions | 224 x 96 x 96mm |
| Safety Specs | EN61010-1 |
Accessories:
- Carrying Case
- LI-ion Battery
- Instruction Manual
- Charger
- USB cable
