Description

Details

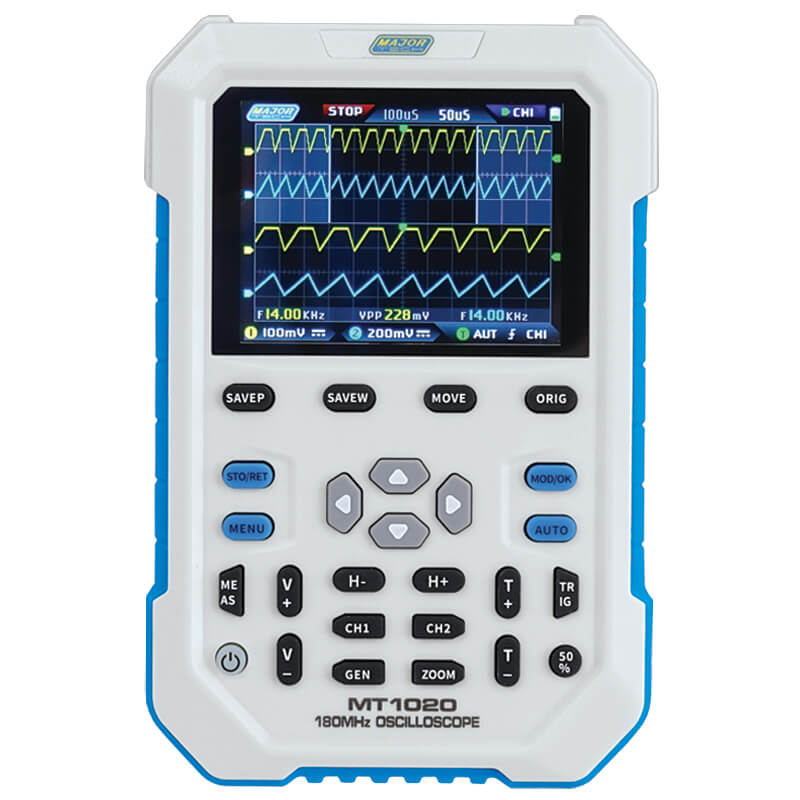

The MT1020 is an affordable handheld dual-channel digital phosphor oscilloscope featuring a versatile two-in-one design with an integrated signal generator. Experience real-time signal analysis with a 500MS/s sampling rate and a broad analogue bandwidth of 180MHz. The device boasts a high-contrast 2.8-inch IPS full-vision LCD screen, enhanced by digital fluorescent technology for a crisp waveform display. The grayscale and colour temperature options provide a visually dynamic experience. Benefit from a rapid waveform refresh rate of up to 50 000wfm/s, facilitating the identification of low-probability abnormal signals. The ZOOM time base simplifies the analysis of digital protocol signals, while the vertical sensitivity as low as 5mV ensures accurate measurement of small 5mVPP signals. The oscilloscope’s ultra-high signal-to-noise ratio, sealed shielding, and stable circuit feedback design deliver a clean and clear waveform. Explore advanced features such as adjustable automatic bandwidth limit, adaptive trigger suppression, and digital trigger technology with precise signal capture capabilities. The DDS signal generator offers 14 function signal waveforms, including a customizable chopping waveform. Achieve frequencies up to 20MHz for sine waves and 10MHz for other waveforms. Store up to 500 customized signals with the original chopping output function. Select from three-time base modes—YT, XY, and rolling—and employ manual cursor measurement for precise readings in noisy environments. The data browser allows easy access to saved waveform data and pictures, supporting operations like zooming and moving. Utilize USB data export to connect to a computer for efficient file copying. Enjoy the convenience of 5V 2A fast charging, reaching 80% charge in just one hour. Elevate your signal analysis and measurement capabilities with the MT1020.

Specifications:

Accessories:

• Test Probes
• Charging Cable
• Instruction Manual
