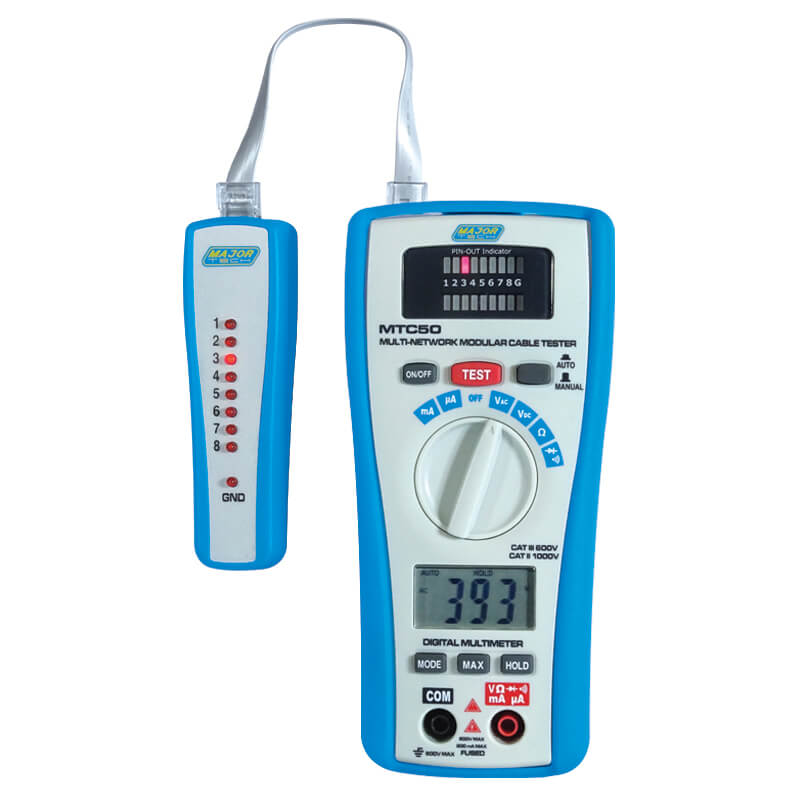

The MTC50 is a 2-in-1 LAN tester and multimeter. This is a very practical tester that can easily read the correct pin configuration of 10/100 Base-T cable (Category 5), 10Base-2 cable (coax), RJ45/RJ11 modular cables, AT&T 258A, 356A, TIA 568A/568B and Token Ring cables by comparing one transmitting end to the corresponding receiving end. With the remote kit, test cables can be installed over long distances either on wall plates or patch panels. It is easy to verify the cable continuity, open, short and cross-connect. The auto range digital multimeter allows the user to measure AC and DC voltage, AC and DC current, Resistance, Continuity and Diode test.
Specifications:
| Function | Range | Resolution | Accuracy |
| DC Voltage | 0.001mV – 600V | 0.1mV | ±(0.5% + 3 Digits) |
| AC Voltage | 1V – 600V | 1mV | ±(1.0% + 5 Digits) |
| DC Current | 200.0μ A – 200.0mA | 0.1μA | ±(1.5% + 3 Digits) |
| AC Current | 200.0μ A – 200.0mA | 0.1μA | ±(1.8% + 8 Digits) |
| Resistance | 200.0Ω – 20MΩ | 0.1Ω | ±(1.2% + 3 Digits) |
| Overrange Indication | Yes | ||
| Input Impedance | >7.5MΩ VDC & >7.5MΩ VAC | ||
| AC Bandwidth | 50Hz-60Hz | ||
| Continuity | Yes | ||
| Diode Test | Yes | ||
| Digital Display | 2000 | ||
| Lan Tester | RJ45 and RJ11 + BNC | ||
| Min Max | Yes | ||
| Back Light | Yes | ||
| Enclosure | Rubber Holster | ||
| Batteries | 2 x AAA and 9V | ||
| Weight | 308g | ||
| Dimensions | 162 x 75 x 44mm | ||
| Safety Specs | IEC61010-1 CAT III 600V | ||
Accessories:
- Carrying Case
- 9V Battery AAA
- Test Leads
- Instruction Manual
