Description
Details

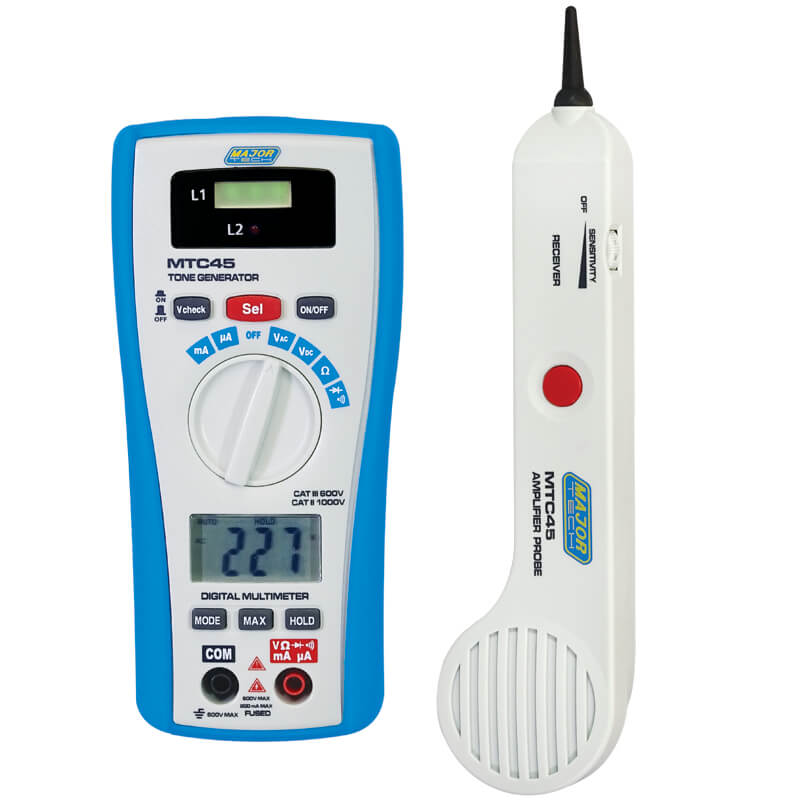

The MTC45 is a 2-in-1 Tone and Probe generator as well as an auto ranging multimeter. The meter tests include wire trace, continuity test, clear/busy/ringing, line test and tip/ring identification. The unit is supplied with crocodile clips for non terminated cables and modular connectors for direct connections to telephone and internet wiring. The auto range digital multimeter can measure AC/DC volts, AC/DC current, Resistance Diode and has a continuity buzzer.
Specifications:
| Function | Range | Resolution | Accuracy |
| DC Voltage | 0.001mV – 600V | 0.1mV | ±(0.5% + 3 Digits) |
| AC Voltage | 1V – 600V | 1mV | ±(1.0% + 5 Digits) |
| DC Current | 200.0μA – 200.0mA | 0.1μA | ±(1.5% + 3 Digits) |
| AC Current | 200.0μA – 200.0mA | 0.1μA | ±(1.8% + 8 Digits) |
| Resistance | 200.0Ω– 20MΩ | 0.1Ω | ±(1.2% + 3 Digits) |
| Overrange Indication | Yes | ||
| Input Impedance | >7.5MΩ VDC & >7.5MΩ VAC | ||
| Ac Bandwidth | 50Hz-60Hz | ||
| Continuity | Yes | ||
| Diode Test | Yes | ||
| Digital Display | 2000 | ||
| Tone and Probe Tester | Cable and Wire; RJ11 | ||
| Min Max | Yes | ||
| Back Light | Yes | ||
| Enclosure | Rubber Holster | ||
| Batteries | 2 x AAA and 2 x 9V | ||
| Weight | 328g | ||
| Dimensions | Generator: 162 x 75 x 44mm
Probe: 228 x 57 x 25mm |
||
| Safety Specs | IEC61010-1 CAT III 600V | ||
Accessories:
- Carrying Case
- 2 x AAA and 2 x 9V
- Test Leads
- Crocodile Clips
- Instruction Manual
