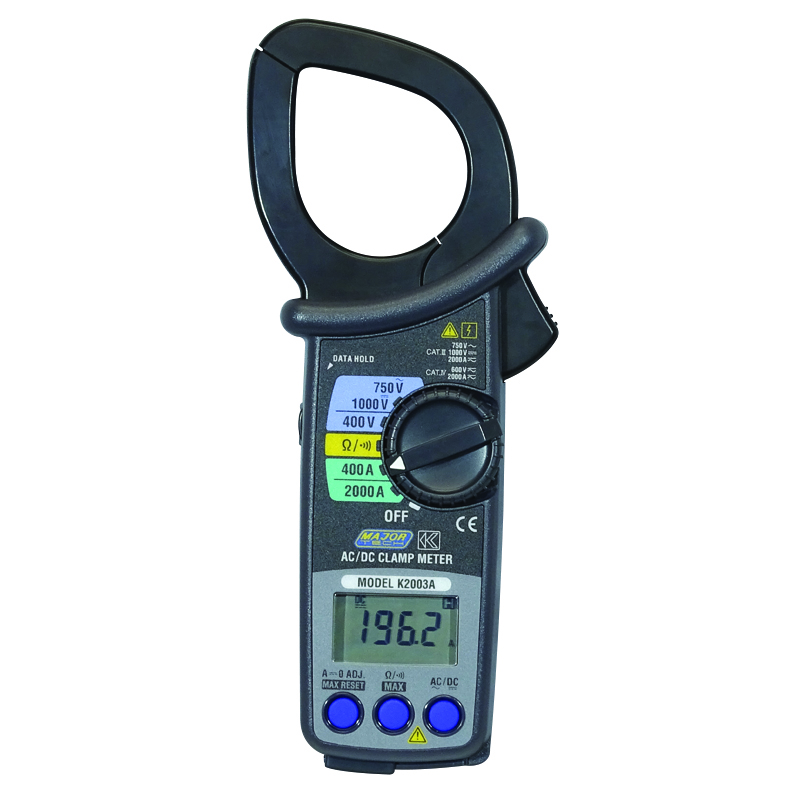

The K2003A is a 2000A AC/DC Clamp Meter designed for superior performance, value and has been redesigned to meet the IEC 61010 Safety Regulations. The new custom designed LCD has a maximum of 4000 counts, and has microprocessor controlled annunciators and the decimal point. The K2003A is an average sensing clamp meter ideally suited for load monitoring and trouble shooting on electrical systems containing linear loads. The CAT IV 600V safety standard ensures the meter can be used in industrial environments.
Specifications:
| Function | Range | Resolution | Accuracy |
| DC Current | 0.1A – 2000A | 0.1A | ± (1.3% + 2 Digits) |
| AC Current | 0.1A – 2000A | 0.1A | ± (1.3% + 3 Digits) |
| DC Voltage | 0.01V – 1000V | 0.01V | ± (1.0% + 2 Digits) |
| AC Voltage | 0.01V – 750V | 0.01V | ± (1.0% + 2 Digits) |
| Resistance | 0.1Ω – 4000Ω | 0.1Ω | ± (1.5% + 2 Digits) |
| Frequency | 1000Hz – 4000Hz | 0.1Hz | ± (1.5% + 5 Digits) |
| Duty Cycle | 0.5 TO 99.0% | 0,001 | ± (1.2% + 2 Digits) |
| AC Bandwidth | 20Hz to 1kHz | ||
| Digital Display | 4200 | ||
| Data logging | Output terminal | ||
| Overrange indication | Yes | ||
| Continuity | Yes | ||
| Jaw size | 55mm | ||
| Input impedance | >2MΩ DCV & >2MΩ VAC | ||
| Peak hold | Yes | ||
| Enclosure | Moulded case | ||
| Low battery indication | Yes | ||
| Power source | 2 x R6P | ||
| Weight | 540g | ||
| Safety Specs | IEC61010-1 CatIV 600V | ||
Accessories:
- Carrying Case
- AA Batteries
- Test Leads
- Instruction Manual
- Output Jack
- COC
