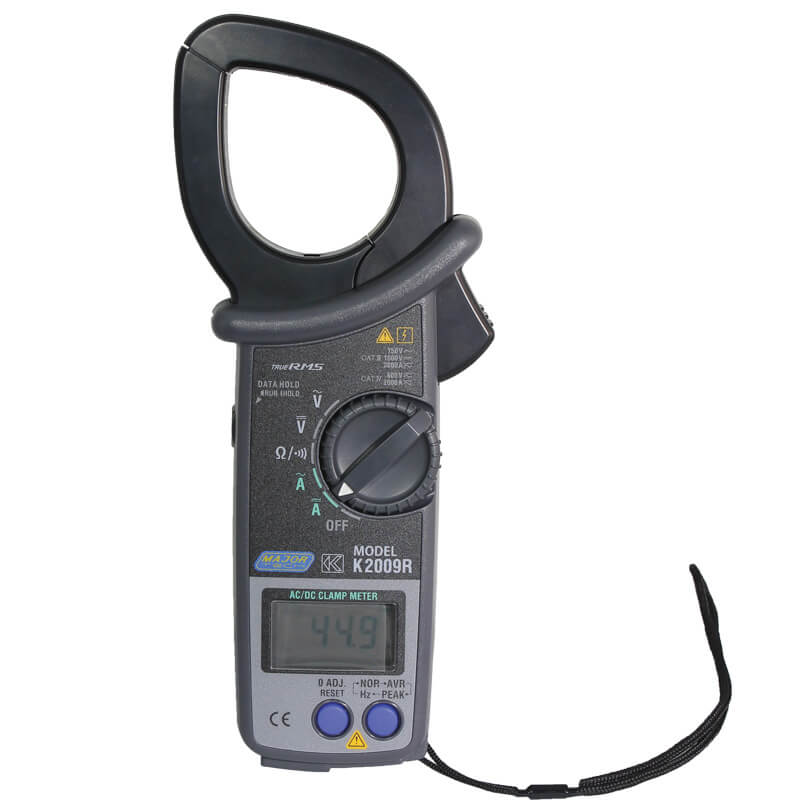

The K2009R is a 2000A AC/DC TRMS Clamp Meter designed for superior performance, value and has been redesigned to meet the IEC 61010 Safety Regulations. The new custom designed LCD has a maximum of 4000 counts, and has microprocessor controlled annunciators and the decimal point. The K2009R is a True RMS clamp meter and offers a unique feature with the LoHz mode which automatically selects a lower sample rate in low frequency measurement to reduce the fluctuations of display readings. The average mode allows easy reading of fluctuating voltages and currents.
Specifications:
| Function | Range | Resolution | Accuracy |
| DC Current | 0.1A – 2000A | 0.1A | ±(1.3% +2) |
| AC Current | 0.1A – 2000A | 0.1A | ±(1.3% +3) |
| DC Voltage | 0.01V – 1000V | 0.01V | ±(1.0% +2) |
| AC Voltage | 0.01V – 750V | 0.01V | ±(1.0% +2) |
| Resistance | 0.1Ω – 4000Ω | 0.1Ω | ±(1.5% +2) |
| Frequency | 0.1Hz – 4000Hz | 0.1Hz | ±(1.5% +5) |
| Duty Cycle | 0.5 TO 99.0% | 0,001 | ±(1.2% +2) |
| AC Bandwidth | 20Hz to 1kHz | ||
| Digital Display | 4200 | ||
| Data logging | Output terminal | ||
| Overrange indication | Yes | ||
| Continuity | Yes | ||
| Jaw size | 55mm | ||
| Input impedance | >2MΩ DCV & >2MΩ VAC | ||
| Peak hold | Yes | ||
| Enclosure | Moulded case | ||
| Low battery indication | Yes | ||
| Power source | 2 x R6P | ||
| Weight | 540g | ||
| Safety Specs | IEC61010-1 CatIV 600V | ||
Accessories:
- Carrying Case
- AA Batteries
- Test Leads
- Instruction Manual
- Output Jack
- COC
