Description
Details

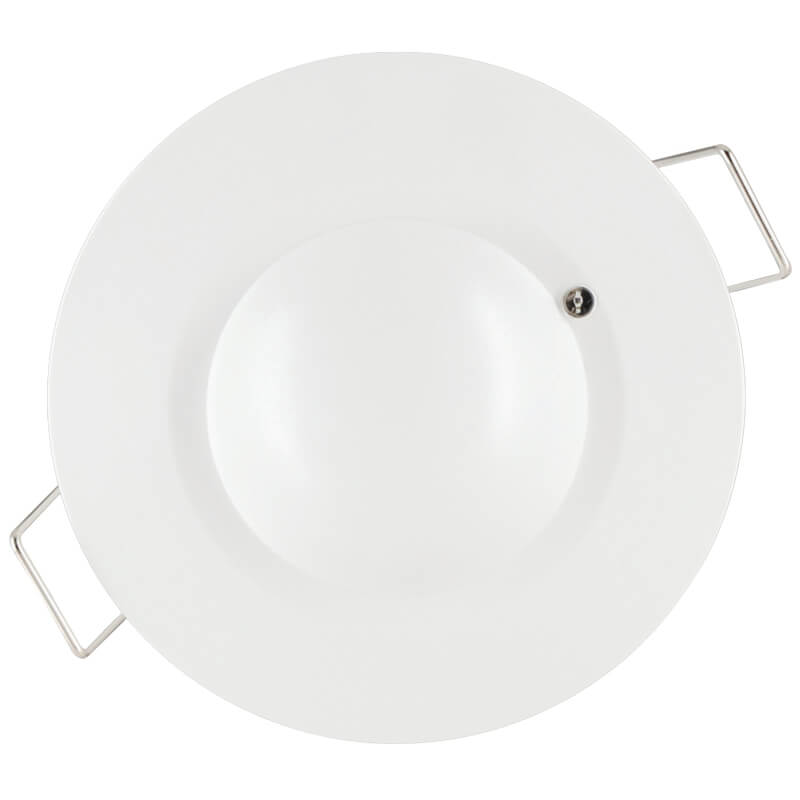

The MS363 automatically turns on lights or any electrical device within the sensors rated load. It detects through obstacles like doors, glass panels, and thin walls, with a 360° detection range when mounted on a ceiling and adjustable settings for time, Lux level and sensitivity. The MS363 can simply be integrated into new or existing installations, it excels in detecting subtle movements over large areas compared to PIR sensors. Its IP20 rating is suitable for indoor installation. Installation must be done by a qualified electrician.
Application:
- Ideal for home use and in educational and commercial properties
- Detects through doors, glass panes or thin walls
Specifications:
| Function | Range |
| Detection Area | 360° |
| Detection Distance | 2m – 16m (Adjustable) <24°C |
| Detection Motion Speed | 0.6 to 1.5m/s |
| HF System | 5.8GHz CW Radar, ISM Band |
| Ambient Light | <3 to 2000 Lux (Adjustable) |
| Installation Height | 1.5m – 3.5m |
| Voltage | 220 to 240V AC |
| Power Frequency | 50/60Hz |
| Rated Load
Incandescent LED / CFL |
1200W 300W |
| Time Delay | 10 sec (±3 sec) to 12 min (±1 min) |
| Power Consumption | <0.9W |
| Mounting | Ceiling Mount |
| Working Temperature | -20°C to 40°C |
| Working Humidity | <93% RH |
| IP Rating | IP20 (Indoor installation) |
| Standards | IEC 60669-1 / 60669-2-1
AS/NZS 60669.1 / 60669.2.1 |
Accessories:
- Instruction Manual
