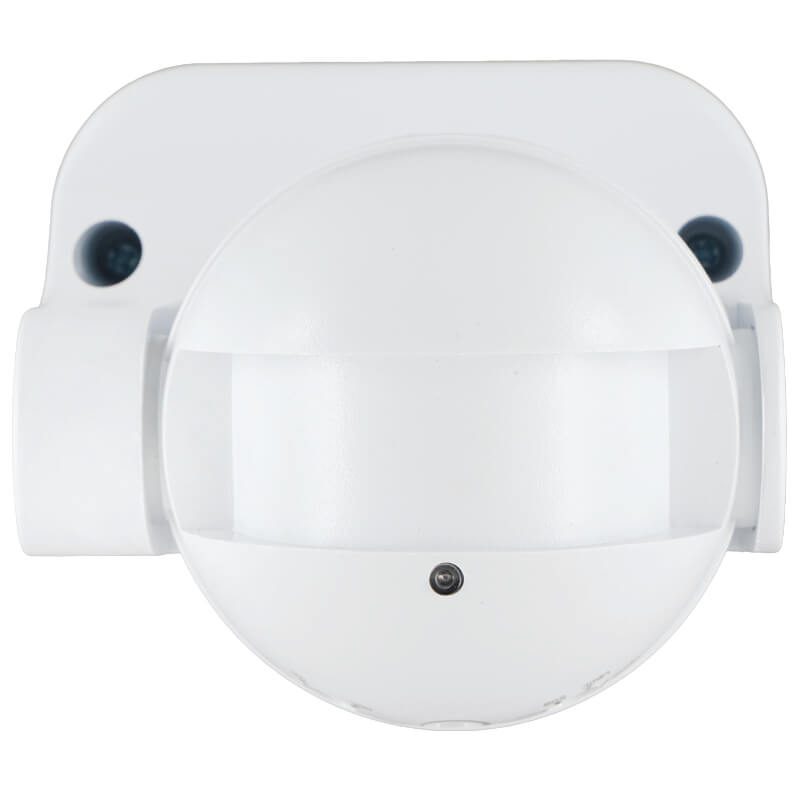

The MS362 automatically turns on lights or any electrical device within the sensors rated load. It detects through obstacles like doors, glass panels, and thin walls, with a 360° detection range when mounted on a ceiling and 180° when wall mounted, and adjustable settings for time, Lux level and sensitivity. Easily integrated into new or existing installations, it excels in detecting subtle movements over large areas compared to PIR sensors.With an IP54 rating, the sensor is suitable for both indoor and sheltered outdoor installations, offering protection against limited dust ingress and water splashes from any direction. Installation must be done by a qualified electrician.
Application:
- Ideal for home use and in educational and commercial properties
- Detects through doors, glass panes or thin walls
Specifications:
| Function | Range |
| Detection Area
Ceiling Installation Wall Installation |
360° 180° |
| Detection Distance
Ceiling Installation Wall Installation |
5m – 15m (Adjustable) 5m – 15m (Adjustable) |
| Detection Motion Speed | 0.6 to 1.5m/s |
| HF System | 5.8GHz CW Radar, ISM Band |
| Ambient Light | <3 to 2000 Lux (Adjustable) |
| Installation Height
Ceiling Installation Wall Installation |
1m to 3.5m 1m to 3.5m |
| Voltage | 220 to 240V AC |
| Power Frequency | 50/60Hz |
| Rated Load
Incandescent LED / CFL |
1200W 600W |
| Time Delay | 10 sec (±3 sec) to 12 min (±1 min) |
| Power Consumption | <0.9W |
| Mounting | Ceiling & Wall Mount |
| Working Temperature | -20°C to 40°C |
| Working Humidity | <93% RH |
| IP Rating | IP54 (Indoor & Outdoor Installation) |
| Standards | IEC 60669-1 / 60669-2-1
AS/NZS 60669.1 / 60669.2.1 |
Accessories:
- Screws
- Instruction Manual
