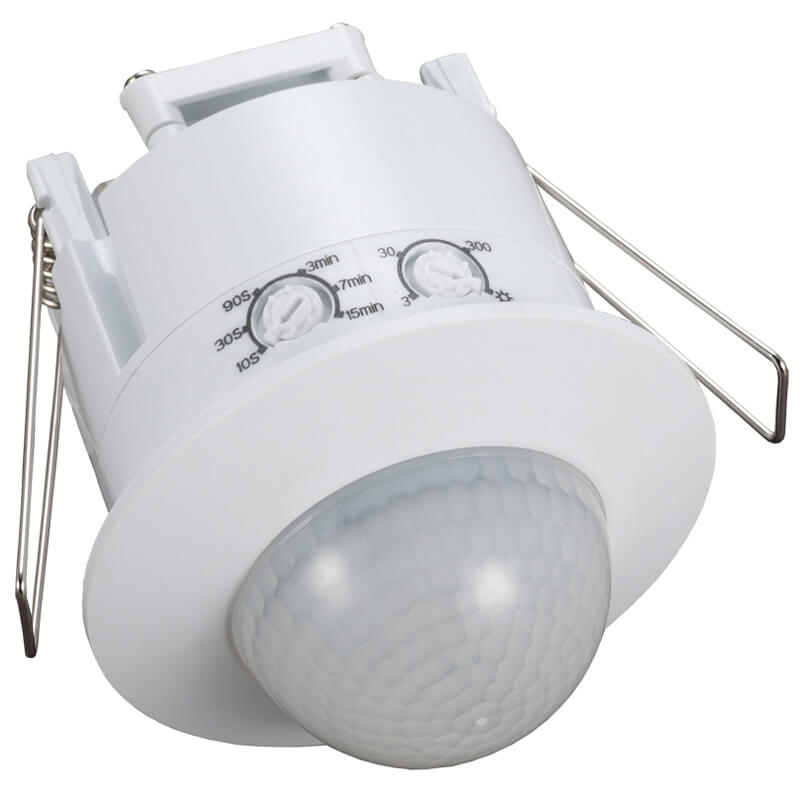

The PIR41 automatically turns on lights or any electrical device within the sensors rated load, when motion and body heat is detected. It has a 360° detection range and adjustable settings for time and Lux levels, easily integrated into new or existing installations. With an IP20 rating, the sensor in intended for indoor installations. Installation must be done by a qualified electrician.
Application:
- Major Tech PIR Sensor is ideal for homes, offices and hotels.
Specifications:
| Function | Range |
| Detection Area | 360° |
| Detection Distance | 12m Max |
| Detection Motion Speed | 0.6 to 1.5m/s |
| Ambient Light | <3 to 2000 Lux (Adjustable) |
| Installation Height | 2.2m – 4m |
| Voltage | 220 to 240V AC |
| Power Frequency | 50/60Hz |
| Rated Load
Incandescent LED / CFL |
2000W 1000W |
| Time Delay | 10 sec (±3 sec) to 15 min (±2 min) |
| Hole Cut Out Size | Ø64mm |
| Power Consumption | <0.5W |
| Mounting | Ceiling Mount |
| Working Temperature | -20°C to 40°C |
| Working Humidity | <93% RH |
| IP Rating | IP20 (Indoor installation) |
| Standards | IEC 60669-1 / 60669-2-1
AS/NZS 60669.1 / 60669.2.1 |
Accessories:
- Instruction Manual
