Description
Details

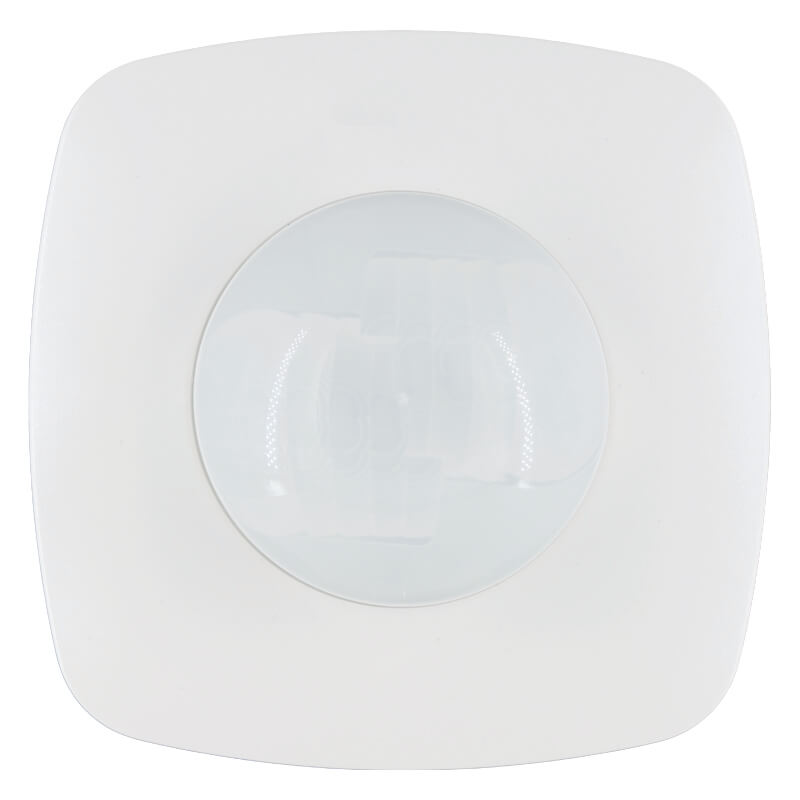

The PIR45 is specially designed for long passages with a detection range of 20m in length and a width detection range of 4m as it automatically turns on lights or any electrical device within the sensors rated load, when motion and body heat is detected. It has a 360° detection range and an installation height of up to 10m, with adjustable settings for Lux and Time, easily integrated into new or existing setups. With an IP20 rating, the sensor is intended for inside installations. Installation must be done by a qualified professional.
Application:
- Major Tech PIR Sensor is ideal for homes, offices and hotels
- The main applications include corridors, pathways, bathrooms and lobbies.
Specifications:
| Function | Range |
| Detection Area | 360° |
| Detection Distance | 4m x 20m Max <24°C |
| Detection Motion Speed | 0.6 to 1.5m/s |
| Ambient Light | <3 to 2000 Lux (Adjustable) |
| Installation Height | 4m – 10m |
| Voltage | 220 to 240V AC |
| Power Frequency | 50/60Hz |
| Rated Load
Incandescent LED / CFL |
2000W 1000W |
| Time Delay | 10 sec (±3 sec) to 30 min (±2 min) |
| Power Consumption | <0.5W |
| Mounting | Ceiling Mount |
| Working Temperature | -20°C to 40°C |
| Working Humidity | <93% RH |
| IP Rating | IP20 (Indoor Installation) |
| Standards | IEC 60669-1 / 60669-2-1
AS/NZS 60669.1 / 60669.2.1 |
Accessories:
- Screws
- Instruction manual
