Description
Details

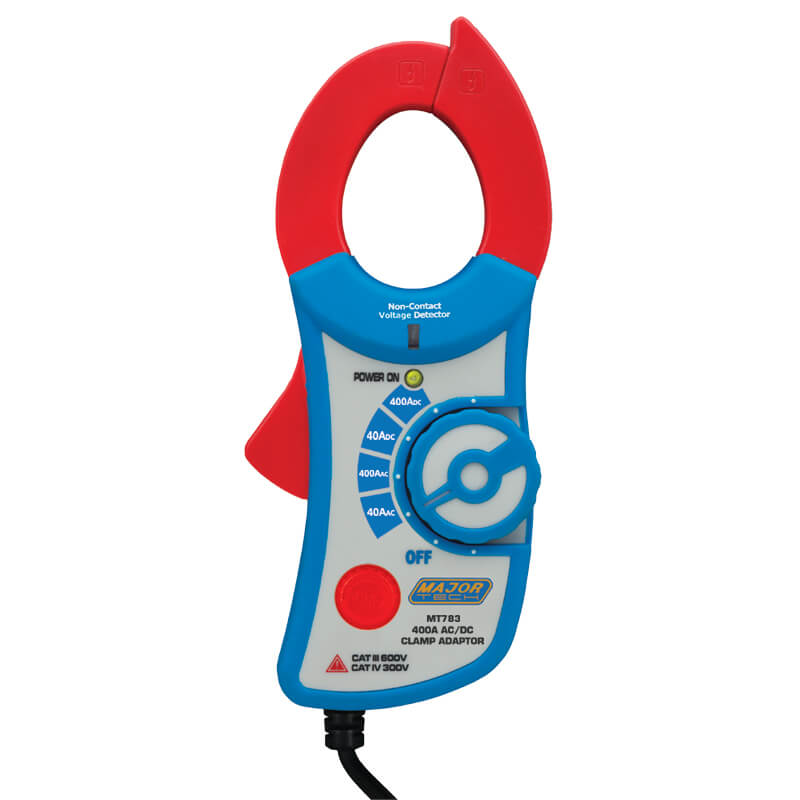

The MT783 400A AC/DC clamp-on adaptor designed to be compatible with any instrument capable of 4000 or 6000 count millivolt measurements. The clamp-on adaptor provides an output of 10mV/A on 40A range and 1mV/A on 400A range AC/DC with a frequency response of 50/60Hz. When measuring the current there is no need to break the circuit or affect the insulation. The NCV Non-Contact Voltage is useful for quick check to see if voltage is present.
Specifications:
| Function | Range | Accuracy |
| Jaw Size | 30mm Max | |
| DC Voltage | 0.1A – 400A | ± (2.8% + 0.5A) |
| AC Voltage | 0.1A – 400A | ± (2.8% + 0.5A) |
| NCV | 50V to 600V | |
| Frequency | 50/60 HZ | |
| Low Battery Indicator | Yes | |
| Batteries | 2x AAA 1.5V | |
| Weight | 173g | |
| Dimensions (LxWxH) | 150mm x 58mm x 35mm | |
