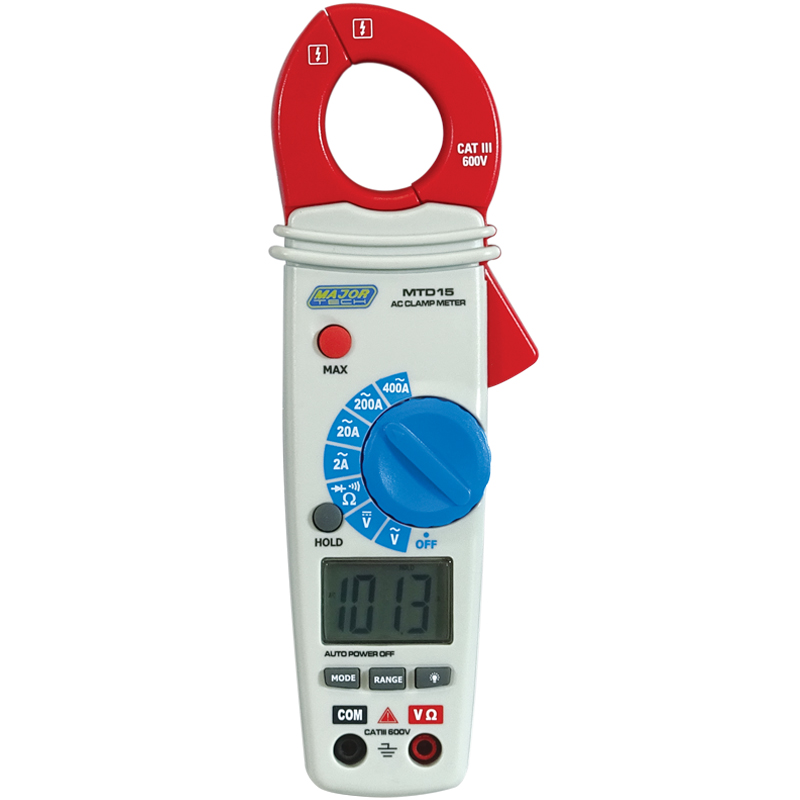

MTD15 is a cost effective 400A AC/DC Clamp Meter and has been developed for commercial, light, industrial, HVAC, residential and DIY applications. The MTD15 is a useful tool that allows you to safely test for electrical problems, motor’s condition and current on appliances. Equipped to test any electrical circuit without disconnecting any wires. Measures 0.001A to 400A AC, DC Volt, Resistance, Continuity buzzer, 23mm Jaw opening and includes carrying case.
Specifications:
| Function | Range | Resolution | Accuracy |
| AC Current | 40A – 400A | 0.001A | ±(2.5% +4) |
| DC Voltage | 400V – 600V | 0.1mV | ±(0.5% +5) |
| AC Voltage | 400V – 600V | 0.1mV | ±(1.5% +3) |
| Resistance | 400Ω – 20MΩ | 0.1Ω | ±(1.5% +2) |
| AC Bandwidth | 50Hz to 60Hz | ||
| Digital Display | 2000 | ||
| Overrange indication | Yes | ||
| Continuity | Yes | ||
| Diode test | Yes | ||
| Jaw size | 23mm | ||
| Input impedance | >10MΩ DCV & >10MΩ VAC | ||
| Data Hold | Yes | ||
| Back Light | Yes | ||
| Enclosure | Moulded case | ||
| Low battery indication | Yes | ||
| Power source | 2 x R03 | ||
| Weight | 200g | ||
| Dimensions | 205 x 70 x 37mm | ||
| Safety Specs | IEC61010-1 CatIII 600V | ||
Accessories:
- Carry Case
