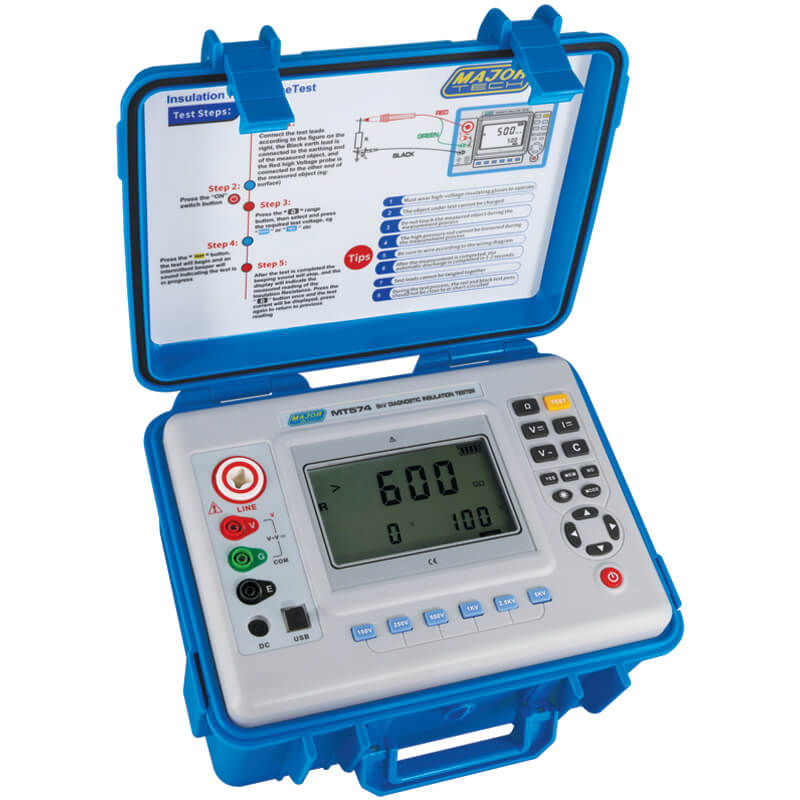

The MT574 is a CAT IV 600V CAT III 1000V Digital High Voltage Tester with measurements from 100V DC to 5000V DC, with increments of 50V on each range, and will automatically discharge the circuit after the test has been completed. Using the range buttons switches, 6 preset ranges of 100V, 250V, 500V, 1000V, 2500V and 5000V can be selected, with an insulation resistance up to 10TΩ. The microprocessor controlled MT574 has the capabilities of being a diagnostic tool and is intended for testing insulation on Rotating Machines, Transformers, Cables, High Voltage Generators, Electric Circuits and Surge Arrestors as the short circuit current output is up to 6mA. 500 test measurement results can be saved in the memory of the meter and recalled onto the LCD display. The large backlit LCD display indicates the readings of insulation, measuring time, output voltage and output current. The MT574 can measure AC up to 750V and DC voltage up to 1000V, DCA up to 6mA and Capacitance up to 50µA, and is housed in a robust case ideal for extended field use, powered by 12.6V rechargeable 1.5V batteries. Stored data can be transferred to a PC using an optical USB and software supplied.
Specifications:
| Function | Range | Resolution | Accuracy |
| Insulation 100V | 0.05 MΩ~500GΩ | 0.001MΩ | ±3%rdg ± 5dgt |
| Insulation 250V | 0.1MΩ~1000GΩ | 0.001MΩ | ±3%rdg ± 5dgt |
| Insulation 500V | 0.2MΩ~2000GΩ | 0.001MΩ | ±3%rdg ± 5dgt |
| Insulation 1000V | 0.5MΩ~10TΩ | 0.01MΩ | ±3%rdg ± 5dgt |
| Insulation 5KV | 2MΩ~10TΩ | 0.01MΩ | ±3%rdg ± 5dgt |
| DC voltage | 0.0V~1000V | 0.1V | ±1.5%rdg±3dgt |
| AC voltage | 0.0V~750V | 0.1V | ±1.5%rdg±3dgt |
| DC current | 1mA – 1000pA | 1pA | ±30%rdg ± 5dgt |
| Capacitance | 10uf – 100nf | 0.1nf | ±10%fs.±5dgt |
| Basic condition | 23°C ± 5°C, below 75%RH | ||
| Rated voltage | 100V, 250V, 500V, 1000V, 5kV | ||
| Test Voltage(V) | Rated voltage x (1±10%) | ||
| Output short-circuit Current | ≥6mA@15KV | ||
| Absorption, Ratio and Polarization Index Measurement | Yes | ||
| Power Supply | 12.6V rechargeable battery | ||
| Backlight | Yes | ||
| Display Mode | 4-bit large LCD display, grey screen backlight | ||
| LCD display size | 108mm x 65mm | ||
| Instrument size | 240mm x 188mm x 85mm | ||
| USB interface | Yes | ||
| Communication Line | USB communication line 1PC | ||
| Test Lead | High voltage probe red 3m, high voltage test lead black 1.5m, green 1.5m | ||
| Data Storage | 500 groups | ||
| Data Review | Yes | ||
| Overflow Display | Yes | ||
| Alarm Function | Alarm when the measured value larger or smaller than the alarm setting value | ||
| Instrument weight | 2750g (including battery) | ||
| Low Battery Display | Yes | ||
| Automatic shut-down | Automatic shutdown after 15 minutes | ||
| Insulation Resistance | ≥50MΩ (between Measuring line and housing) | ||
| Pressure Resistance | AC3kV / 50Hz 1min | ||
| Working Temperature and Humidity | -10°C to 50°C?85%RH | ||
| Storage Temperature and Humidity | -15°C to 55°C?90%RH | ||
| Safety Regulations | IEC61010-1, IEC1010-2-31, IEC61557-1,5,
IEC60529 (IP54) pollution grade 2, CAT III 300V |
||
Accessories:
- High Pressure Rod (red)
- High voltage test land (black and Green)
- Monitoring Software CD
- USB Communication Line
- Charger
- Instruction Manual
