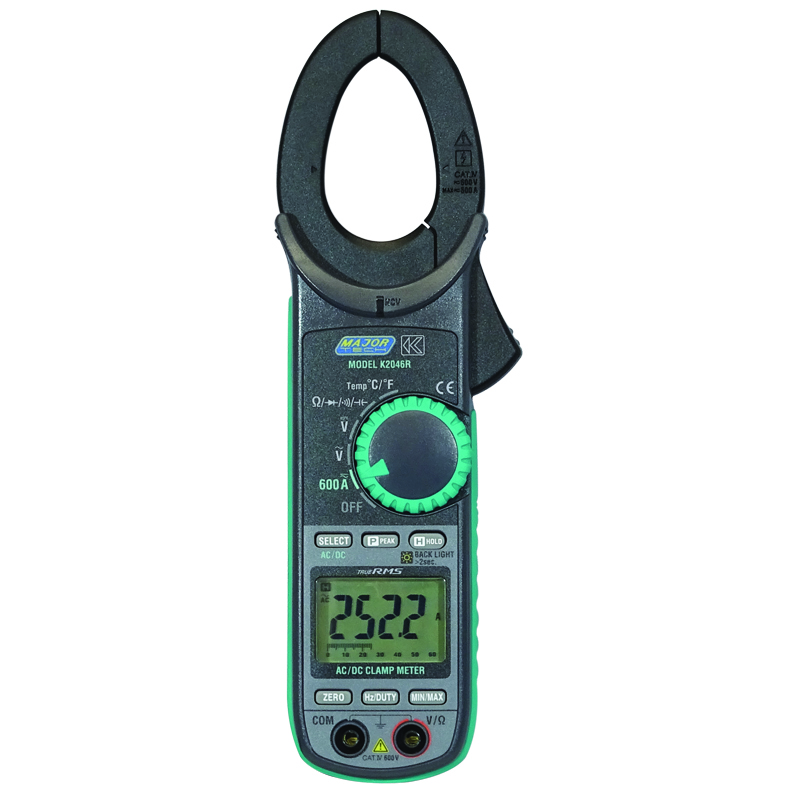

The K2046R is a 600A AC/DC True RMS Clamp Meter, auto-ranging multimeter measuring current, voltage, capacitance, frequency, and resistance in electrical testing applications. It has a clamp that measures ACA and DCA to 600A. The Red LED indicates the presence of AC voltage, this NCV is a safety function for the user. This meter is of the same family as the K2056R being one of the first meters designed to meet international safety standard IEC 61010-1 CAT IV 600V to meet the demands for measuring voltage and current spikes. Ideally suited for power distribution companies, power utilities and maintenance fields.
Specifications:
| Function | Range | Resolution | Accuracy |
| DC Current | 0.1A – 600A | 0.1A | ±(1.5% +5) |
| AC Current | 0.1A – 600A | 0.1A | ±(2.0% +5) |
| DC Voltage | 0.1mV – 600V | 0.1mV | ±(1.0% +3) |
| AC Voltage | 0.1V – 600V | 0.1V | ±(1.5% +4) |
| Resistance | 0.1Ω – 60MΩ | 0.1Ω | ±(1.5% +5) |
| Frequency | 0.1Hz – 10kHz | 0.1Hz | ±(0.5% +5) |
| Capacitance | 0.01μF – 4000μF | 0.01μF | ±(2.5% +20) |
| Temperature | -50 to 700°C | 1°C | ±(5.0°C +3) |
| Duty Cycle | 0.1 TO 99.9% | 0,001 | ±(2.5% +5) |
| AC Bandwidth | 40Hz to 400Hz | ||
| Digital Display | 6039 | ||
| Bargraph | Yes | ||
| Non Contact Voltage (NCV) | Yes | ||
| Overrange indication | Yes | ||
| Continuity | Yes | ||
| Diode test | Yes | ||
| Jaw size | 33mm | ||
| Input impedance | >10MΩ DCV & >10MΩ VAC | ||
| Min Max | Yes | ||
| Peak hold | Yes | ||
| Data Hold | Yes | ||
| Back Light | Yes | ||
| Enclosure | Double moulded case | ||
| Low battery indication | Yes | ||
| Power source | 2 x R03 | ||
| Weight | 310g | ||
| Safety Specs | IEC61010-1 CatIV 600V | ||
Accessories:
- Carrying Case
- Temperature Probe
- AA Batteries
- Test Leads
- Instruction Manual
- COC
