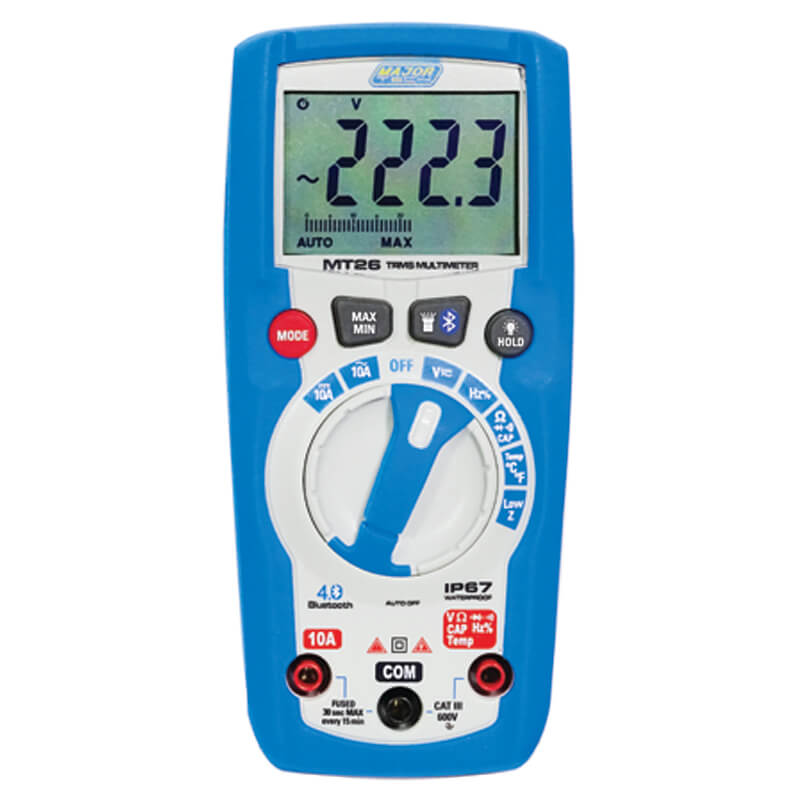

The MT26 is a CAT III 600V True RMS compact multimeter offering measurements of AC and DC voltage, AC and DC current, frequency, capacitance, resistance and temperature. The meter has a large 4000 count backlit LCD with the added advantage of an analogue bargraph. The Low Z function has a low pass filter to eliminate errors caused by “Ghost” voltages. There is a built-in LED flashlight for dimly lit areas and a tilt stand. The Bluetooth function allows the user to transmit data to the Android or iOS mobile App for viewing, organising and sharing recordings. The meter has a double moulded rubber case.
Specifications:
| Function | Range | Resolution | Accuracy |
| DC voltage | 0.1mV -600V | 0.1mV | ± (1.0% + 3 Digits) |
| AC voltage | 0.1mV – 600V | 1mV | ± (1.0% + 5 Digits) |
| DC Current | 1mA – 10A | 1mA | ± (2.0% + 3 Digits) |
| AC Current | 1mA – 10A | 1mA | ± (2.5% + 3 Digits) |
| Duty Cycle | 1.0% to 99.90% | 0,10% | ± (1.2% + 2 Digits) |
| Resistance | 0.1Ω – 40.00MΩ | 0.1Ω | ± (1.5% + 5 Digits) |
| Frequency | 0.001Hz – 9.999MHz | 0.001Hz% | ± (1.0% + 5 Digits) |
| Capacitance | 10pF – 4000μF | 10pF | ± (3.0% + 5 Digits) |
| Temperature | -18°C to 760°C | 0.1°C | ± (2.0% + 5°C) |
| True RMS Measurements | Yes | ||
| AC Bandwidth | 50Hz to 400Hz | ||
| Digital Display | 4000 | ||
| Bargraph | Yes | ||
| Bluetooth | Yes | ||
| Continuity | Yes | ||
| Diode test | Yes | ||
| Overrange indication | Yes | ||
| Input impedance | >7.8MΩ VDC & VAC | ||
| Data Hold | Yes | ||
| Enclosure | Double moulded | ||
| Low battery indication | Yes | ||
| Power source | 3 x LR6 | ||
| Weight | 318g | ||
| Dimensions | 147 x 68 x 50mm | ||
| Safety Specs | IEC61010-1 CatIII 600V | ||
Accessories:
- Soft Carrying Case
- Test leads
- Temperature Probe
- Instruction Manual
- 3 x AAA Batteries
