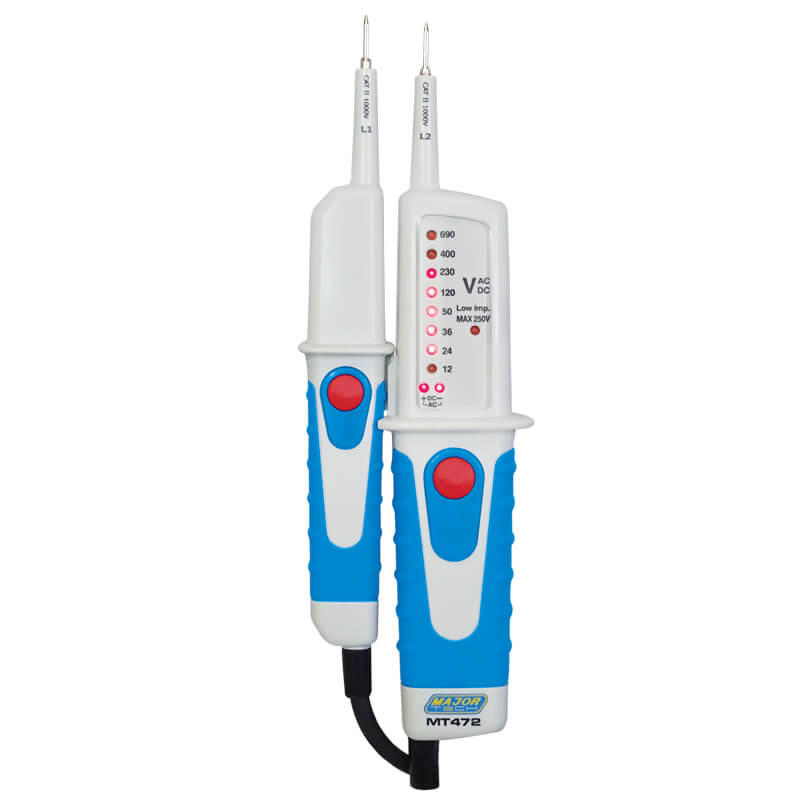

The MT472 is IP64 and is a basic voltage tester designed to meet electrician’s requirements for the measurement of AC and DC voltage and continuity. The tester displays the voltage on red LED’s which increment as the voltage increases. There is an LED indication for polarity when DCV is measured. No switching of the meter on as the tester automatically turns on when voltage is applied to the two test probes. The MT472 incorporates a Low Impedance Test, which induces a basic load of approximately 6kΩ at 690 volts, and continuity measurements up to ≤ 400kΩ. The MT472 meets the CAT IV 600V and CAT III 1000V safety standards.
Specifications:
| Function | Range | Accuracy |
| DC Voltage | 12 – 690V | ± (30%) |
| AC Voltage | 12 – 690V | ± (30%) |
| RCD Test | 10mA and 30mA | |
| Continuity | Yes | |
| AC Bandwidth | 50Hz – 60Hz | |
| Digital Display | LED Indication | |
| Polarity Indication | Yes | |
| Low Input Impedance | ≤6kΩ | |
| Flashlight | Yes | |
| Enclosure | Double Injection | |
| Weight | 255g | |
| Dimensions | 150 x 70 x 48mm | |
| Safety Specs | IEC61010-1 CAT IV 600V | |
Accessories:
- Instruction manual
- Test probe covers for CATIV 600V
