Details

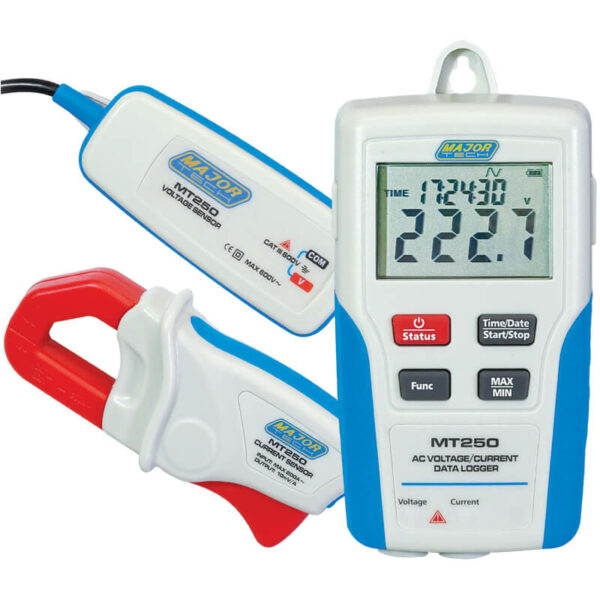

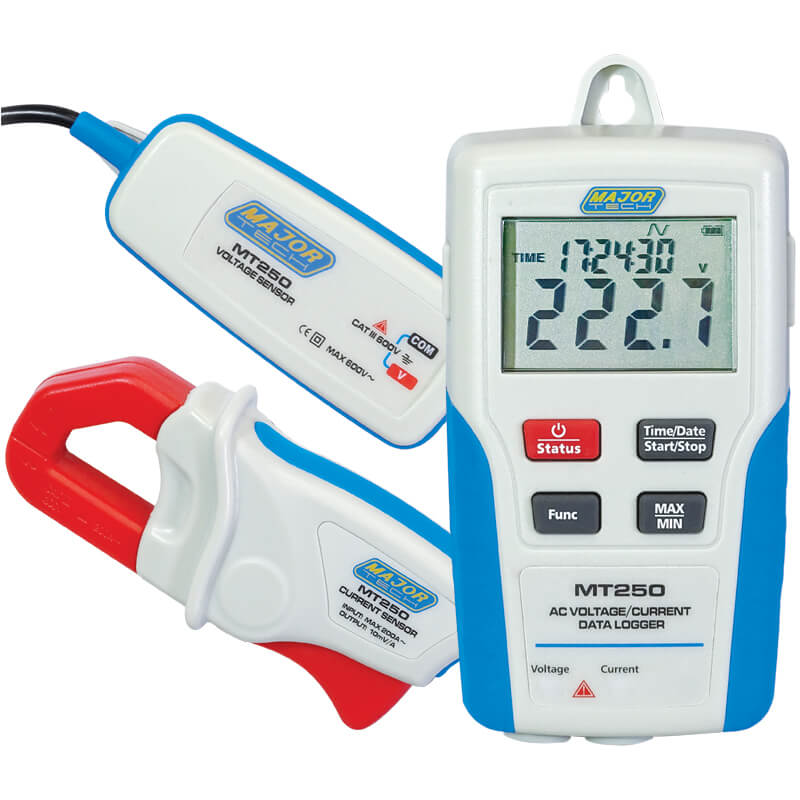

The MT250 is designed for easy use in recording AC Voltage and Current. The Logger can be programmed simply via USB interface from your PC. 1 second rapid sampling rate variable to 24 hours. LCD display of Voltage or Current for quick reference checks.
Specifications:
| Function | Range | Resolution | Accuracy |
| Voltage (RMS) | 6 – 600.0V | 0.1V | ±(2% ±1V) |
| Current (RMS) | 1A – 200A | 0.1A | 100mA ±(2.0% ± 0.9%) f.s. +accuracy of sensor |
| Trigger 100mA ±(3.5% ± 2.2%) f.s. + accuracy of sensor | |||
| Capture PQA 100mA ±(3.0% ± 1.7%) f.s. + accuracy of sensor | |||
| Crest Factor | 2.5 or less: RMS (sine) +2% +1%f.s. 95% or less of each range | ||
| Allowable Input | 50/60Hz, 10% or more of the range Ch1 | ||
| Display Range | 0-105% of each range | ||
| Frequency Range | 40 – 1KHz | ||
| Wiring Connections | 2 Channel | ||
| Measurements and Parameters | Voltage, Current | ||
| Sampling Speed | 1second to 24Hour | ||
| Internal Memory | 100,044 points current or voltage, 50,022 points channel current and voltage | ||
| PC Communication | USB | ||
| Display Range | 0-105% of each range | ||
| Display Update Period | Real time | ||
| Enclosure | Over Moulded casing | ||
| Power Source AC | External DC9V (special AC Adapter) | ||
| Power Source DC | 4 x R6P | ||
| Weight | 248g | ||
| Dimensions | 114 x 63 x 34mm | ||
| Safety Specs | IEC 61010-1 Cat III 300V | ||
| Included Accessories | USB Cable, Voltage lead, Current Clamp, Manual, 4 x R6P Batteries | ||
Accessories:
- Carrying case
- AAA Batteries
- Test leads
- Instruction manual
- USB cable
