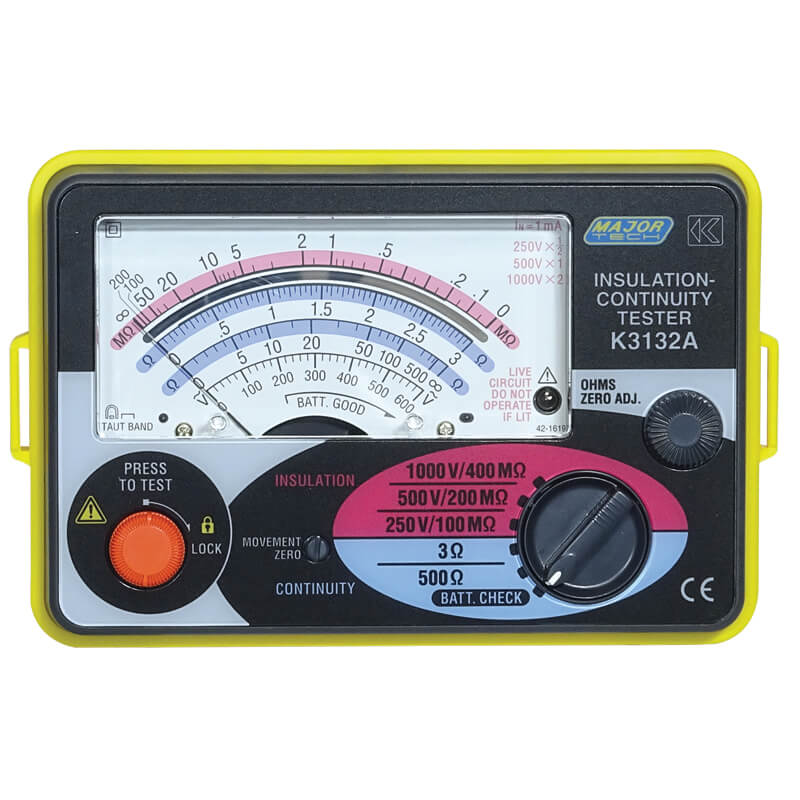

The K3132 is a highly compact and easy to use Insulation and Continuity Tester. Designed to have an IP protection rating of IP54 and is ideally suited to more arduous environments. The instrument offers three insulation test ranges: 250V, 500V and 1000V, 3Ω and 500Ω Continuity range. This meter is not only equipped with a “Live Circuit Warning” but also displays the actual AC voltage measurements of the mains supply.
Specifications:
| Function | Range | Resolution | Accuracy |
| AC voltage | 0 – 600V | 20V | ± (5%) |
| Resistance | 0 – 500Ω | 0.1Ω | ± (5%) |
| Insulation resistance 250V | 250V | 0 – 100MΩ | ± (0.1MΩ-10MΩ) |
| Insulation resistance 500V | 500V | 0 – 200MΩ | ± (0.2MΩ-20MΩ) |
| Insulation resistance 1000V | 1000V | 0 – 400MΩ | ± (0.4MΩ-40MΩ) |
| Short circuit current | 1-2mA | ||
| Overrange indication | Yes | ||
| Digital Display | Analogue Display | ||
| Auto discharge | Yes | ||
| Back Light | Yes | ||
| Enclosure | Moulded case IP54 | ||
| Low battery indication | Yes | ||
| Power source | 6 x R6 | ||
| Weight | 560g | ||
| Dimensions | 106 x 160 x 72mm | ||
| Safety Specs | IEC61010-1 CatIII 300V | ||
Accessories:
- Pouch for leads
- AA batteries
- Test leads
- Instruction Manual
- Strap
- MTMAG
