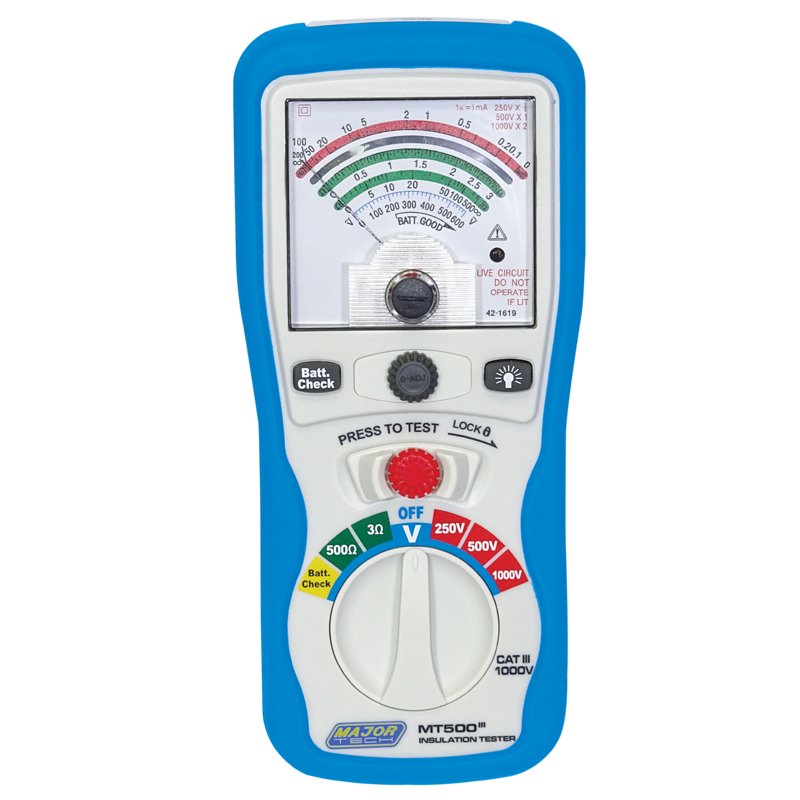

The MT500 is a 1000V Analogue Insulation Tester rugged, compact and easy to use Insulation and Continuity Tester. The instrument offers three insulation test ranges: 250V, 500V and 1000V, a 3Ω continuity range and a 500Ω resistance range. This meter is not only equipped with a “Live Circuit Warning” but also displays the actual AC voltage measurements of the mains supply. The scale has a backlight which is ideal when working in dimly lit environments.
Specifications:
| Function | Range | Resolution | Accuracy |
| AC voltage | 1V – 600V | 20V | ± (3.0%) |
| Resistance | 0.05Ω–500Ω | 0.05Ω | ± (3.0%) |
| Insulation resistance 250V | 250V | 0 – 100M? | ± (5.0%) |
| Insulation resistance 500V | 500V | 0 – 200M? | ± (5.0%) |
| Insulation resistance 1000V | 1000V | 0 – 400M? | ± (5.0%) |
| Short circuit current | 1.3mA | ||
| Current measurement Range | 200mA@4.5V | ||
| Overrange indication | Yes | ||
| AC Bandwidth | 40Hz – 400Hz | ||
| Digital Display | Analogue Display | ||
| Continuity | Yes | ||
| Auto discharge | Yes | ||
| Input impedance | >1.2M? VAC | ||
| Data Hold | Yes | ||
| Back Light | Yes | ||
| Enclosure | Double moulded | ||
| Low battery indication | Yes | ||
| Power source | 6 x R6 | ||
| Weight | 700g | ||
| Dimensions | 200 x 92 x 50mm | ||
| Safety Specs | IEC61010-1 CatIV 600V | ||
Accessories:
- Test Leads
- Black Crock Lead
- Magnetic Strip
- Carrying Case
- Adjustable shoulder strap
- 6 x AA Batteries
- Instruction Manual
