Description
Details

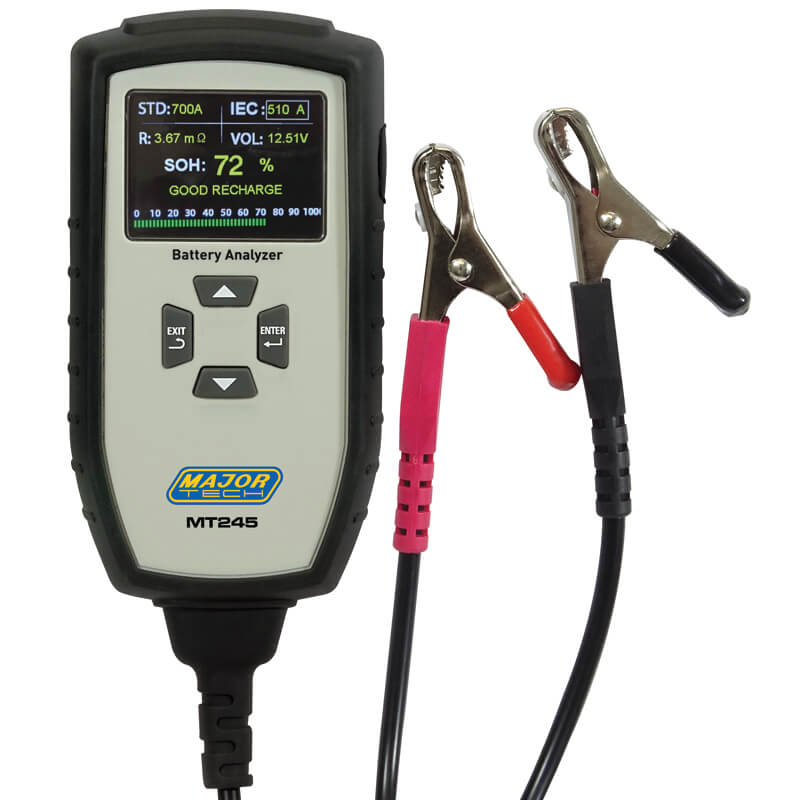

The MT245 Battery Tester currently adopts the world’s most advanced conductance testing technology to easily, quickly and accurately measure the status of a battery under test, with functions like battery test, starting system test, charging system test and others. This Battery tester can calculate the actual cold cranking capability of the battery and the extent of aging, providing reliable analysis evidence for the test and maintenance of the battery. The starting system test is mainly to test and analyse the starting motor. Through testing the actual required cranking current and cranking voltage of the starting motor, the user can determine whether the starting motor is in perfect working order. All readings are displayed on the clear coloured LCD display and using the Bluetooth function the meter wirelessly transmits data to the Android or iOS mobile App allowing the user to view, save, organise and share recordings.
Specifications:
| Function | Range |
| Test Voltage Range | 8 to 30V DC |
| Battery Type | Ordinary lead-acid battery, AGM flat battery, AGM spiral battery, colloidal battery, EFB battery, etc |
| Battery Capacity Range | 30Ah – 200Ah |
| Test Method | Kelvin Four-terminal sensing |
| Test Battery Standard | CCA, BCI, CA, MCA, JIS, DIN, IEC, EN, SAE |
| Measuring Functions | Battery starting capacity test, starting load test, operation load test and charging system test |
| Size | 168 x 78 x 38mm |
| Weight | 265g |
| Standard Measuring Range | |
| CCA | 100 – 2000 |
| BCI | 100 – 2000 |
| CA | 100 – 2000 |
| MCA | 100 – 2000 |
| JIS | 26A17 – 245H52 |
| DIN | 100 – 1400 |
| IEC | 100 – 1400 |
| EN | 100 – 2000 |
| SAE | 100 – 2000 |
Accessories:
- MT245
- USB Cable
- Instruction Manual
