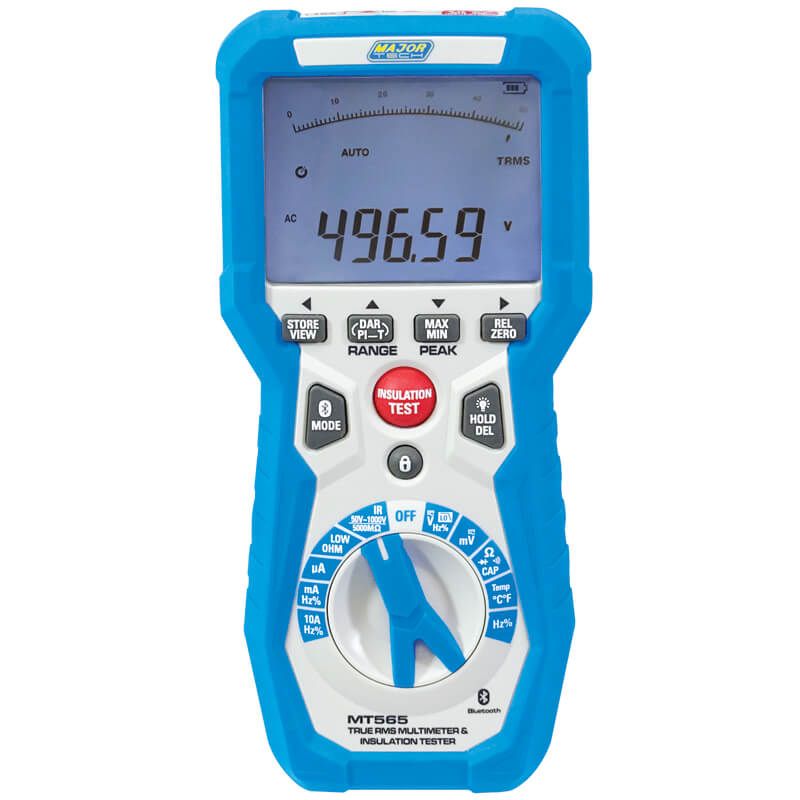

The MT565 is a combination of a True RMS multimeter and an Insulation Continuity tester. The MT565 measures AC/DC voltage, AC/DC current, resistance, capacitance, frequency, duty cycle and temperature. The Low pass filter can accurately measure variable frequency drive (VFD) signals. The insulation tester offers 50V, 100V, 250V, 500V and 1000V ranges with an insulation resistance up to 5000MΩ, DAR and Auto PI functions with adjustable time setting and an auto discharge. The Low Ohm function offers a resolution of 1mA and an open circuit voltage of 5V. The meter has a 50 000 count LCD dual display with an analogue bargraph, and the CAT IV 600V rating ensures the highest level of safety. The unit offers Bluetooth communication and an internal memory to store and transfer information. The Bluetooth app is available on both Android and IOS platforms. This provides maximum versatility and a wide range of features for both trouble shooting and preventative maintenance electricians.
Specifications:
| Function | Range | Resolution | Accuracy |
| DC voltage | 0.01mV – 1000V | 0.01mV | ± (0.1% + 4 Digits) |
| AC voltage | 0.01mV – 1000V | 0.01mV | ± (1.0% + 5 Digits) |
| DC current | 0.01.μA – 10A | 0.01μA | ± (0.1% + 3 Digits) |
| AC current | 0.01µA – 10A | 0.01μA | ± (1.5% + 3 Digits) |
| Duty cycle | 5 to 95% | 0,01% | ± (1% + 2 Digits) |
| Resistance | 0.01Ω – 50MΩ | 0.01Ω | ± (1% + 4 Digits) |
| Frequency | 0.001Hz – 50MHz | 0.001Hz | ± (0.3% + 2 Digits) |
| Capacitance | 0.01nF – 5.000mF | 0.01nF | ± (3.5% + 9 Digits) |
| Temperature | -50 to 1200°C | 0.1°C | ± (1.0% + 2.5°C) |
| Insulation 50V | 0.050 -2000MΩ | 0.001MΩ | ± (4.0% + 5 Digits) |
| Insulation 100V | 0.100 – 5000MΩ | 0.001MΩ | ± (4.0% + 5 Digits) |
| Insulation 250V | 0.250 – 5000MΩ | 0.001MΩ | ± (3.0% + 5 Digits) |
| Insulation 500V | 0.500 – 5000MΩ | 0.001MΩ | ± (3.0% + 5 Digits) |
| Insulation 1000V | 1.000 – 5000MΩ | 0.001MΩ | ± (4.0% + 5 Digits) |
| Short circuit current | 1mA | ||
| Current Measurement | 200mA | ||
| Overrange indication | Yes | ||
| True RMS Measurements | AC | ||
| AC Bandwidth | 50Hz to 1000Hz | ||
| Digital Display | 50000 | ||
| Continuity | Yes | ||
| Polarization index | PI = IR10min/IR1min | ||
| Dielectric absorption ratio | IR60s/!R15s | ||
| Diode test | Yes | ||
| Bargraph | Yes | ||
| Bluetooth | Yes | ||
| Records events and Trends | Yes | ||
| Data logging | Yes | ||
| Input impedance | >10MΩ VDC & >9MΩ VAC | ||
| Low Pass filter | Yes | ||
| Min Max | Yes | ||
| Peak hold | >1ms | ||
| Data Hold | Yes | ||
| Back Light | Yes | ||
| Enclosure | Double moulded | ||
| Low battery indication | Yes | ||
| Power source | 6 x LR6 | ||
| Weight | 634g | ||
| Dimensions | 210 x 97 x 68 mm | ||
| Safety Specs | IEC61010-1 CatIV 600V | ||
Accessories:
- Test Leads
- Magnetic Strip
- Remote Test Leads
- Black Croc Lead
- Hard Carrying Case
- 6 x AA Batteries
- Instruction Manual
