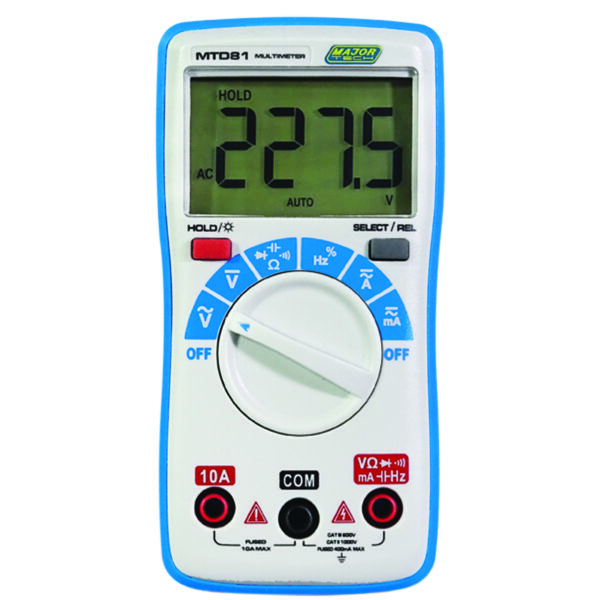

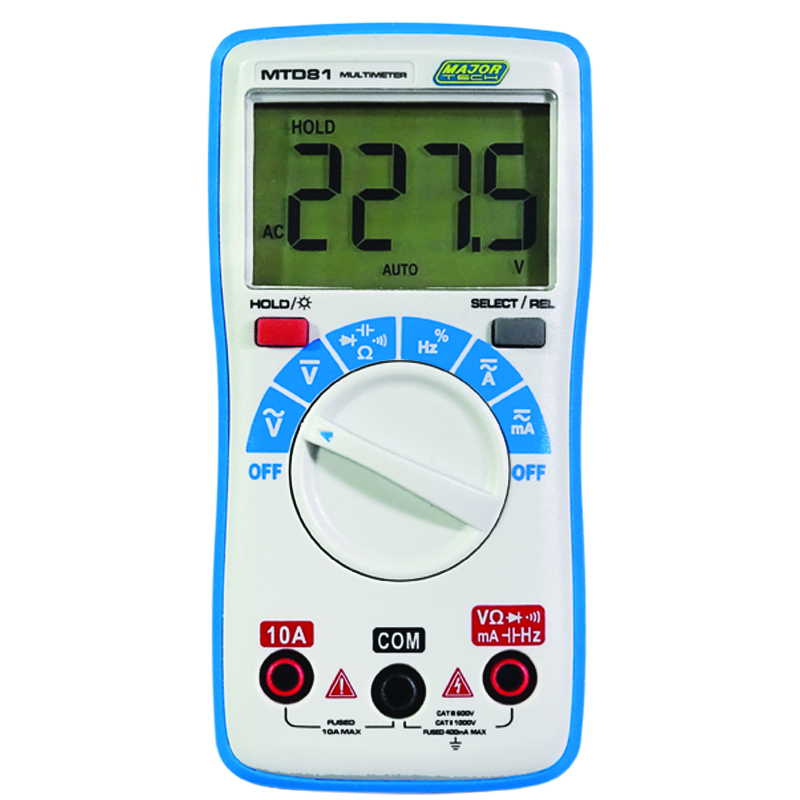

The MTD81 is a Compact Auto Ranging Multimeter with a 4000 count LCD backlit display. Measuring functions include AC and DC voltage, AC and DC current, Resistance, Frequency, Capacitance, continuity buzzer and diode test range. This meter meets the International Standard IEC 61010-1 CAT III 600V, and is ideally suited for everyday use by electricians, electronic technicians, students and DIY users. The meter has a built-in tilt stand for hands free convenience as well as low battery indication and auto power off.
Specifications:
| Function | Range | Resolution | Accuracy |
| DC Voltage | 0.1mV – 1000V | 0.1mV | ± (0.5% + 4 Digits) |
| AC Voltage | 0.1mV – 750V | 0.1mV | ± (1.2% + 4 Digits) |
| DC Current | 0.1mA – 10A | 0.01mA | ± (1.5% + 4 Digits) |
| AC Current | 0.1mA – 10A | 0.01mA | ± (2.0% + 4 Digits) |
| Duty Cycle | 1%-99% | 0.1% | ± (0.1% + 2 Digits) |
| Resistance | 0.1? – 40M? | 0.01M? | ± (0.8% + 4 Digits) |
| Frequency | 0.01Hz – 9.999MHz | 0.001MHz | ± (0.1% + 2 Digits) |
| Capacitance | 0.01Hz – 9.999MHz | 0.1µF | ± (3.5% + 4 Digits) |
| Continuity | Yes | ||
| Built-in buzzer | Yes | ||
| Diode test | Yes | ||
| Battery test | Yes | ||
| AC Bandwidth | 50Hz to 400Hz | ||
| Digital Display | LCD 4000 count | ||
| Overrange indication | Yes | ||
| Data Hold | Yes | ||
| Back Light | Yes | ||
| Back Light | Yes | ||
| Enclosure | ABS | ||
| Power source | 2 x 1.5V AAA battery | ||
| Weight | 114g (incl. battery) | ||
| Dimensions | 130 x 65 x 32mm | ||
| Safety Specs | CatIII 600V | ||
Accessories:
- Soft Carrying Case
- 2 x AAA Batteries
- Test Leads
- Instruction Manual
