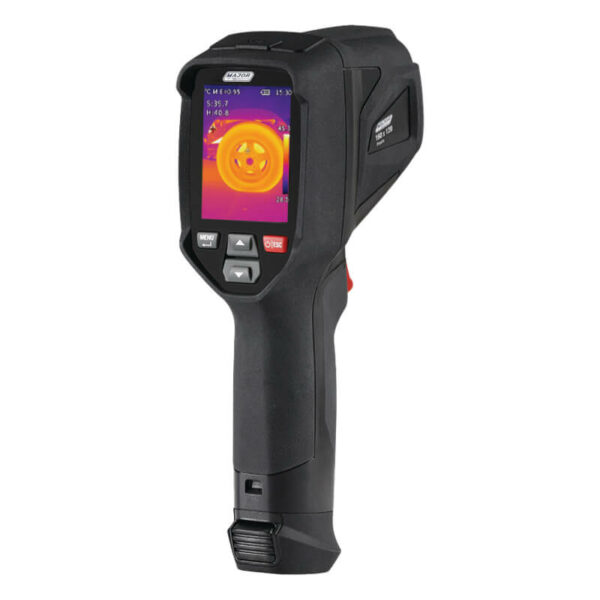

The MTi11 Thermal Imager simplifies the detection of hot connections in distribution boards. With its focus-free design and large screen, identifying and analysing hot spots is both quick and efficient. Lightweight and equipped with a 160 x 120 pixel sensor operating at 25Hz, this thermal imager is an essential tool for maintenance electricians. The Type-C USB port facilitates the transfer of thermal data to a PC for immediate analysis and sharing via email, minimizing costly downtime. Additionally, live images can be viewed on a PC while connected to the MTi11. Key features include adjustable emissivity, a temperature range of -20°C to 550°C, centre spot temperature and hot/cold alarms.
Specifications:
| Function | Range |
| Imaging and Optical Data | |
| Field of View | 16.5° x 16.5° /0.5m |
| Spatial Resolution (IFOV) | 2.26mrad |
| Thermal Sensitivity/NETD | < 0.1°C @ +30°C (+86°F) / 100mK |
| Image Frequency | 50Hz |
| Focus Mode | Focus Free |
| Focal Length | 7.5mm |
| Focal Plane Array (FPA) / Spectral Range | Uncooled microbolometer / 8-14μm |
| IR Resolution | 120×120 (14400 pix) |
| Image Presentation | |
| Display | 2.4” LCD, 240 x 320 |
| Image Modes | IR Image, Visual image, Image Fusion |
| Colour Palettes | Iron, rainbow, grey, grey inverted |
| Measurement | |
| Temperature Range | -20°C to 380°C |
| Temperature Accuracy | ± (2°C or ± 2%) |
| Measurement Analysis | |
| Spot | Centre spot |
| Automatic Hot/Cold detection | Auto hot or cold markers |
| Emissivity Correction | Variable 0.01 to 1.0 |
| Measurement Corrections | Emissivity, reflected temperature |
| Storage | |
| Images Format | Bitmap (.bmp) with 6400 points |
| Interfaces | Bluetooth BLE4.0 |
| Enclosure | Over Moulded casing |
| Input System | DC5V |
| Power Source | 3.7V 1300mAH Lithium ion,>6 hours operating time |
| Charging System | DC 5V 1A USB Charger |
| Weight | 260g |
| Dimensions | 175 x 58 x 70mm |
| Safety Specs | EN61010-1 |
Accessories:
- Hard Plastic Carrying Case
- Instruction Manual
- 3.7V (13000mA) Lithium Ion Battery
