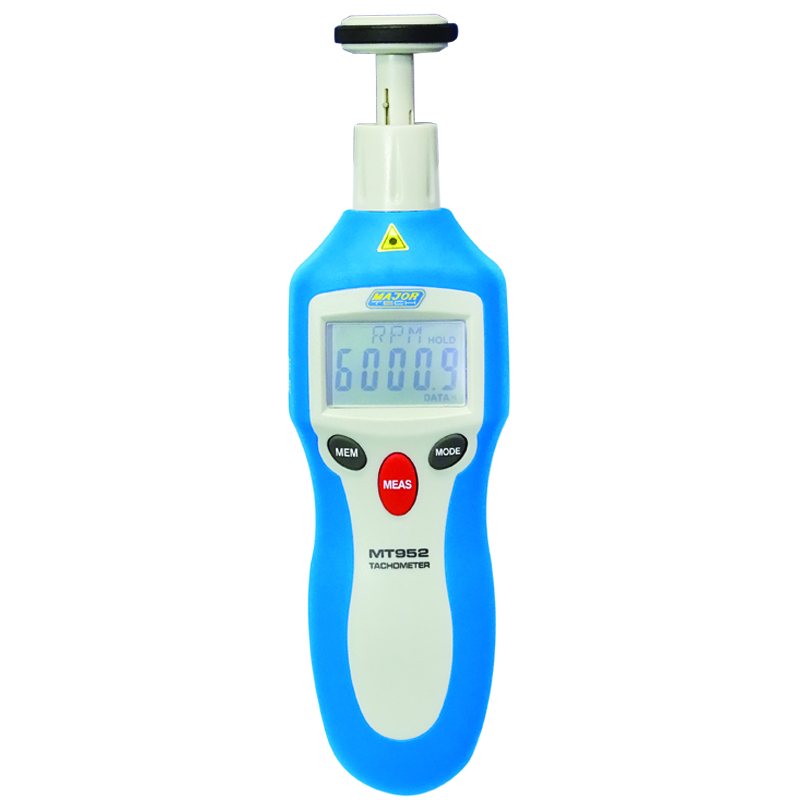

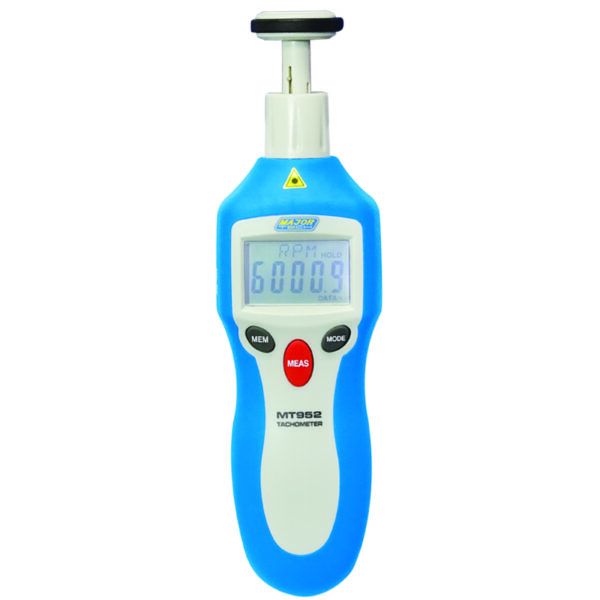

The MT952 is a combination of a Contact / Non-Contact Tachometer for convenient, fast and accurate measuring of high rotational speeds up to 100 000RPM. The MT952 is supplied standard with an adaptor that converts the MT952 into a tachometer for measuring surface and axial speeds. The meter is capable of various measurements such as Rotation Speed, Total Revolutions, Frequency, Surface speed and length. The instrument is ideally suited for use with engines, process machinery, motors and machine tools.
Specifications:
| Function | Range | Resolution | Accuracy |
| Contact Test Range | 2 – 20 000RPM | 0.1RPM | ±(0.05% + 1 Digit) |
| Non-Contact Test Range | 2 – 99 999RPM | 0.1RPM | ±(0.05% + 1 Digit) |
| Sampling Time | 0.5s (over 120RPM) | ||
| Detection Distance | 50mm – 500mm | ||
| Time Base | Quartz crystal | ||
| Laser Spot Non-Contact | Yes | ||
| Digital Display | 5 Digit LCD | ||
| Overrange Indication | Yes | ||
| Min Max | Yes | ||
| Data Hold | Yes | ||
| Back Light | Yes | ||
| Enclosure | Over mould | ||
| Low Battery Indication | Yes | ||
| Batteries | 9V | ||
| Weight | 160g | ||
| Dimensions | 160 x 60 x 42mm | ||
Accessories:
- Soft Carrying Case
- 9V Battery
- Instruction manual
- 3 x MT905
- 1 x MT952CW
