Description
Details

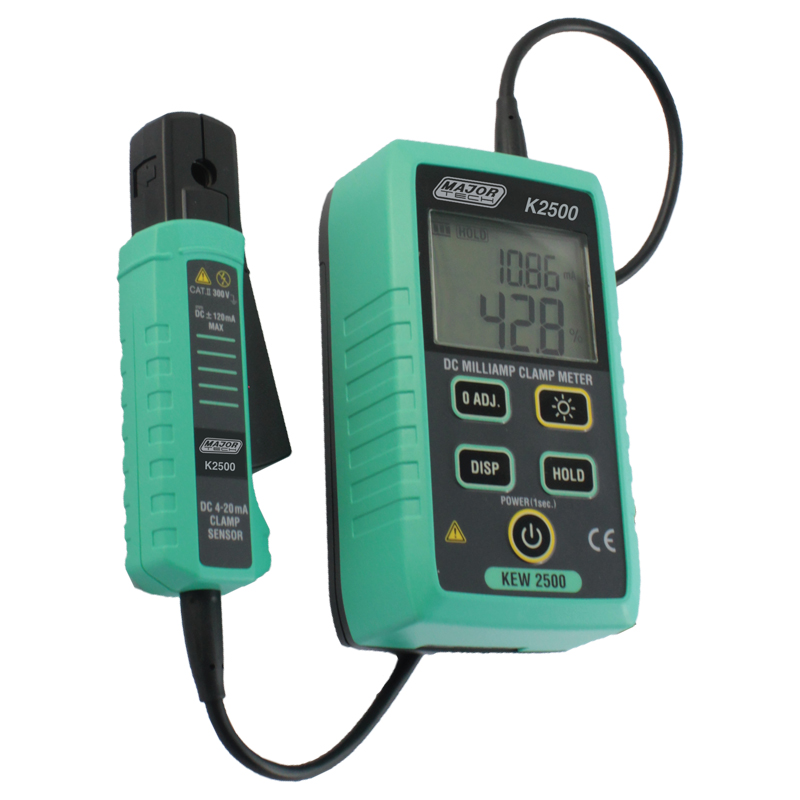

The K2500 Process Current clamp measures 4-20mA process current used for instrumentation with its compact Ø6mm jaw without breaking the loop. It is easy to handle and is equipped with a LED torch and backlit display for use in dark environments. The K2500 also comes with an analogue output which allows the user to connect to a multimeter or recorder for logging. The large display accurately displays % value and mA measured.
Specifications:
| Function | Range | Resolution | Accuracy |
| DC Current | 20mA – 120mA | 0.01mA | ± (0.2% + 5 Digits) |
| 4-20mA% | Yes | ||
| Jaw size | Ø6mm | ||
| Digital Display | Dual display mA/% | ||
| Data logging | Output terminal | ||
| Data Hold | Yes | ||
| Back Light | Yes | ||
| Enclosure | Double moulded case | ||
| Low battery indication | Yes | ||
| Power source | 4 x LR6 | ||
| Weight | 290g | ||
| Dimensions | 111 x 61 x 40mm | ||
| Safety Specs | IEC61010-1 CatII 300V | ||
Accessories:
- Carrying Case
- AA Batteries
- Instruction Manual
- COC
