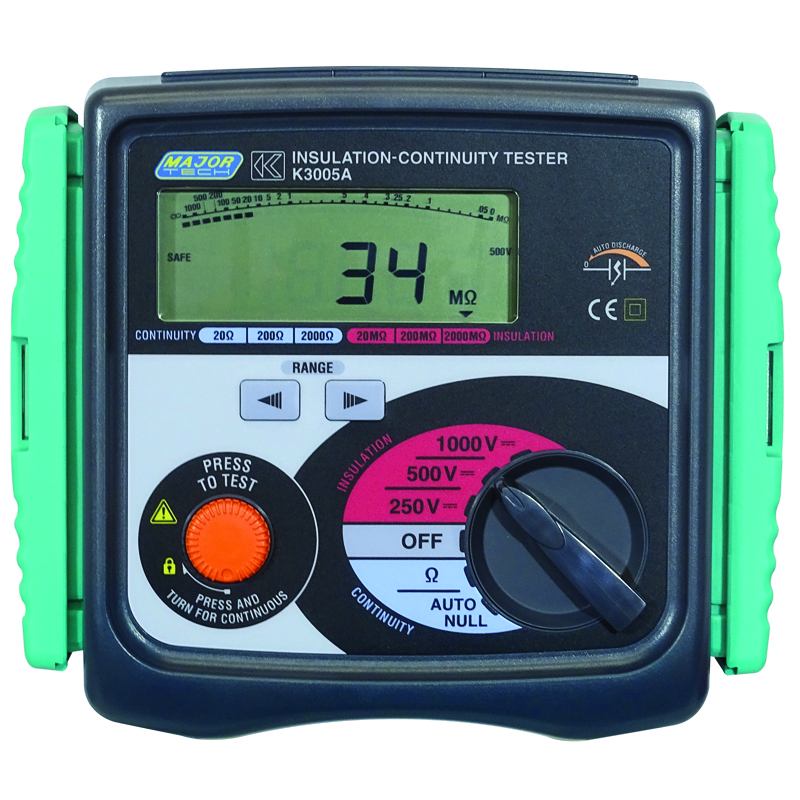

The K3005 has three test voltage ranges: 250V, 500V and 1000V and is equipped with a unique bargraph display that illustrates to the user that the insulation under test meets the minimum voltage required by the regulations. An advanced feature included in this model is Auto Null mode, this unique function subtracts the test lead resistance during continuity tests, ensuring repeatable accuracy. Another great feature is the EL Backlight on the display which enables readings to be taken in dimly lit areas.
Specifications:
| Function | Range |
| Insulation resistance 250V | 250V |
| Insulation resolution 250V | 20MΩ |
| Insulation accuracy 250V | ±(1.5% +5) |
| Insulation resistance 500V | 500V |
| Insulation resolution 500V | 200MΩ |
| Insulation accuracy 500V | ±(1.5% +5) |
| Insulation resistance 1000V | 1000V |
| Insulation resolution 1000V | 2000MΩ |
| Insulation accuracy 1000V | ±(10% +3) |
| Short Circuit Current | 1.5mA |
| Current measurement | 200mA |
| AC Voltage | 600V |
| AC Voltage resolution | 1V |
| AC voltage accuracy | ±(5.0% +3) |
| Resistance | 2000Ω |
| Resistance resolution | 0.01Ω |
| Resistance accuracy | ±(1.5% +5) |
| Continuity | Yes |
| Auto discharge | Yes |
| Digital Display | LCD Display |
| Bargraph | Yes |
| Over-range indication | Yes |
| Enclosure | Moulded case IP54 |
| Low battery indication | Yes |
| Power source | 6 x R6 |
| Dimensions | 185 x 167 x 89mm |
| Weight | 900g |
