Description
Details

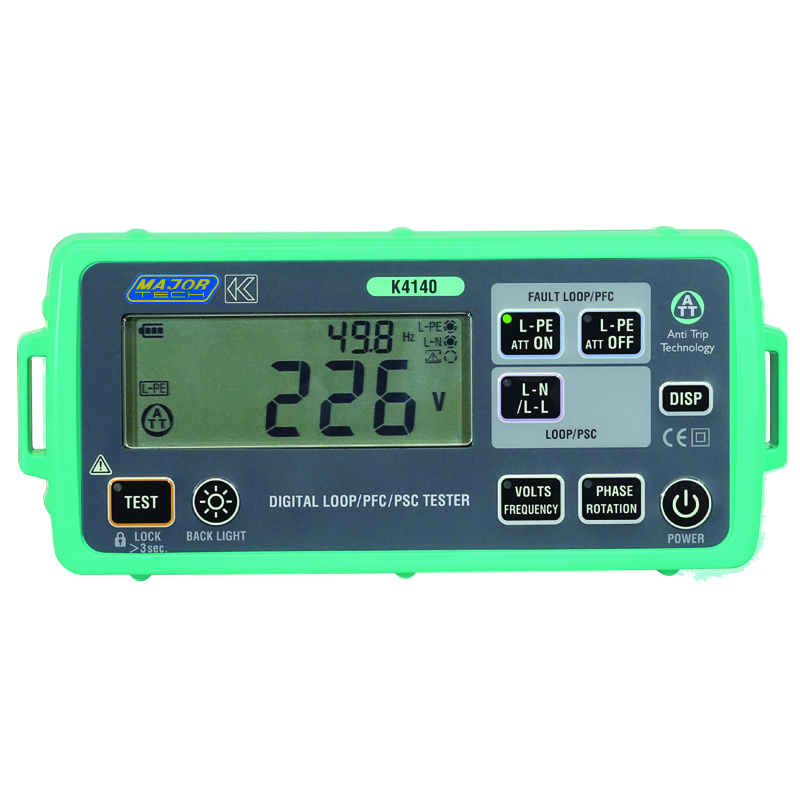

The K4140 incorporates Anti-Trip Technology (ATT) which electronically bypasses RCDs when performing loop impedance tests. This saves time and money by not having to take the RCD out of the circuit when testing and is a safer procedure to follow. With the ATT function enabled, a test current of 15mA or less is applied between Line & Earth. It enables resolution loop impedance measurements (up to 0.01 ohm), without tripping RCDs rated at 30mA and above. A full set of new safety test leads are included, they have an overmould for maximum grip and are extremely robust. The instrument also comes in a soft carry case, a quick reference guide locates on the instrument body, a soft strap belt and is supplied with a calibration certificate.
Specifications:
| Function | Range |
| Loop Impedance | L-PE, L-PE(ATT), L-N,L-L |
| Test current | 6A/40mS |
| Voltage measurement | 0-500V |
| Frequency response | 45-65Hz |
| PC Interface | Yes |
| Display | LCD Display |
| Back light | Yes |
| Enclosure | Molded case IP54 |
| Low battery indication | Yes |
| Power source | 230V/8 x LR6 |
| Weight | 860g |
Accessories:
- Carrying Case
- AA Batteries
- Test Leads
- Instruction manual
- COC
