Description
Details

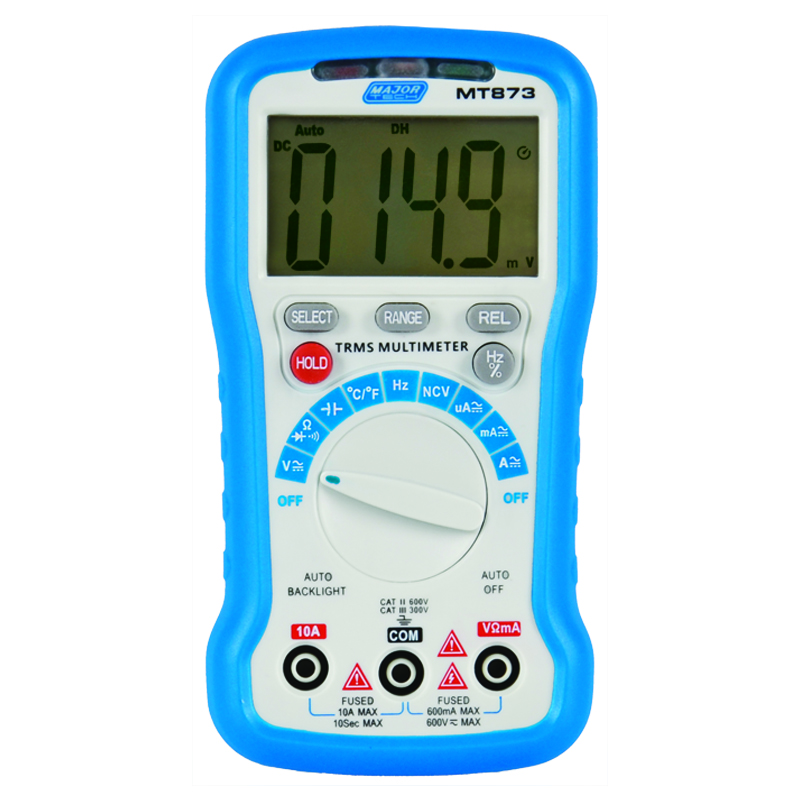

The MT873 is a True RMS multimeter and can be used to measure AC/DC voltage, AC/DC current,resistance, capacitor, frequency, duty cycle, Non Contact AC Voltage (NCV) detection, diode test and audible continuity. It also features a data hold & relative mode function. This multimeter is a slim sized, portable, robust, drop proof digital multimeter. It has a 6000 count digit LCD monitor with large 25mm digits that offer clear and easy reading. The circuitry design is centred on large scale IC A/D converters in conjunction with an over-load protection circuit, the meter offers excellent performance and is ideal for a versatile digital multimeter.
Specifications:
| Function | Range | Resolution | Accuracy |
| DC Voltage | 0.1mV – 600V | 0.1mV | ±(0.5% + 2 Digits) |
| AC Voltage | 1mV – 600V | 1mV | ±(1.0% + 3 Digits) |
| DC Current | 0.1μA – 10A | 0.1μA | ±(1.2% + 2 Digits) |
| AC Current | 0.1μA – 10A | 0.1μA | ±(1.5% + 3 Digits) |
| Duty Cycle | 0.1 to 99.9% | 0.001 | ±(2% + 2 Digits) |
| Resistance | 0.1Ω – 60MΩ | 0.1Ω | ±(1.0% + 2 Digits) |
| Frequency | 0.001Hz – 9.999MHz | 0.001Hz | ±(0.1% + 5 Digits) |
| Capacitance | 1pF – 99.99mF | 1pF | ±(2.5% + 5 Digits) |
| Temperature | -20°C to 1000°C | 1°C | ±(3.0% + 2°C Digits) |
| True RMS Measurements | Yes | ||
| AC Bandwidth | 40Hz to 400Hz | ||
| Digital Display | 6000 | ||
| Continuity | Yes | ||
| Diode Test | Yes | ||
| Non-Contact Voltage (NCV) | Yes | ||
| Overrange Indication | Yes | ||
| Input Impedance | 10MΩ VDC & 10MΩ VAC | ||
| Data Hold | Yes | ||
| Enclosure | Rubber holster | ||
| Low Battery Indication | Yes | ||
| Battery | 9V | ||
| Dimensions | 150 x 100 x 36mm | ||
| Safety Specs | IEC61010-1 CAT II 600V | ||
Accessories:
- Instruction Manual
- 1 x 9V Batteries
- Test Leads”K” Type
- Thermocouple Sensor Probe
