Description
Details

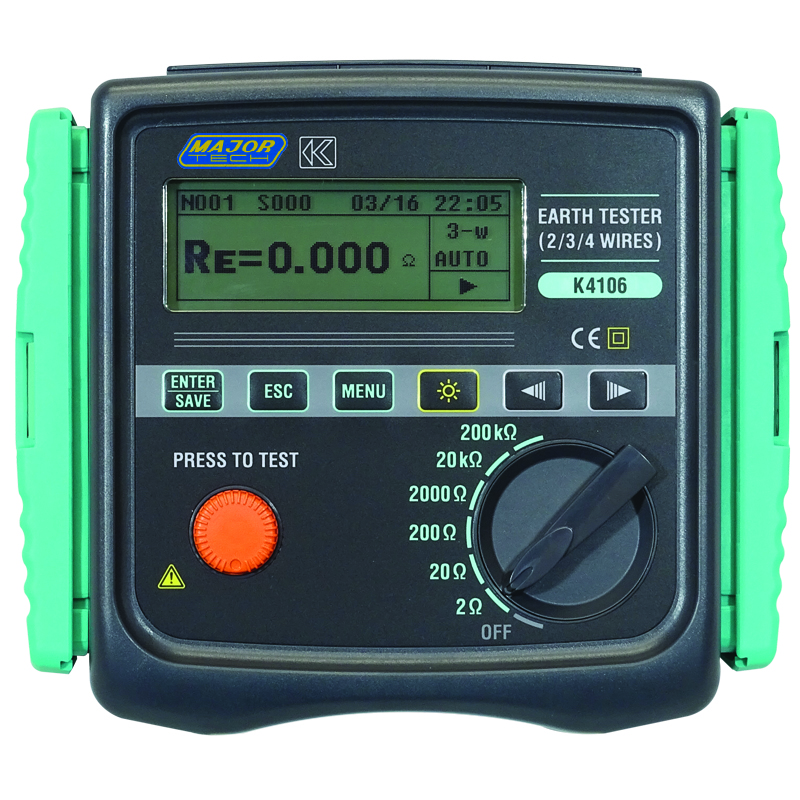

The K4106 is a 2/3/4-wire Digital Earth resistance/Earth Resistivity Tester equipped with a microcomputer and can measure earth resistances and calculate earth resistivity’s (ρ), using the “Wenner” 4 pole method. This instrument is ideal for Earth measurements also in large Earthing systems because it uses a considerable test current of 80mA(max) yielding a high resolution of 1mΩ on 2Ω range. The Earth Resistivity measurement is useful for soil surveys to establish the optimum earth electrode system design and site, to avoid extra cost of re working electrode installations. It can also be suitable for geological investigations.
Specifications:
| Function | Range | Resolution | Accuracy |
| Continuity | 20/200/2000Ω | 0.1Ω | ±0.1Ω(0-0.19Ω) |
| Short circuit current | >200mA | ||
| Insulation resistance | 250/500/1000V | 20/200/2000MΩ | ± (2%+ 6 Digits) |
| Rated current | 1mA | ||
| Loop Impedance | L-PE, L-PE(ATT), L-N, L-L | ||
| Loop range | 20,200,2000Ω | 0.01Ω | ± (3%+ 4 Digits) |
| PSC/PFC | Derived from Loop and Voltage measurement | ||
| Test current | 6A/20mS | ||
| RCD | x 5, x 1, x 1/2, auto ramp mA | 15/30/50/100/200/500/1000mA | ± (8% + 2 Digits) |
| Measuring range | 2000ms | ± (1%+ 3 Digits) | |
| Phase angle | 0° to 180° | ||
| Voltage measurement | 25-500V | ± (2% + 4 Digits) | |
| Frequency response | 45-65Hz | ||
| Earth resistance | 20/200/2000Ω | ± (3% + 0.1Ω) | |
| PC Interface | Yes | ||
| Display | Dot Matrix LCD | ||
| Memory | 1000 Test results | ||
| Back light | Yes | ||
| Enclosure | Moulded case IP54 | ||
| Low battery indication | Yes | ||
| Power source | 8 x LR6 | ||
| Weight | 900g | ||
Accessories:
- K7229A (Earth precision measurement)
- K7238A (Simplified measurement test leads)
- K8032 (Auxiliary earth spikes [2 spiks/set]) ×2 sets (4 spikes in total)
- K8200-04 (Cord reel [4 pcs]) ×1 set
- K8212-USB (USB adaptor with “KEW Report(Software)
- K9121 (Shoulder strap)
- K9125 (Carrying case)
- R6 × 8
- Instruction manual
- Calibration certificate
