Description
Details

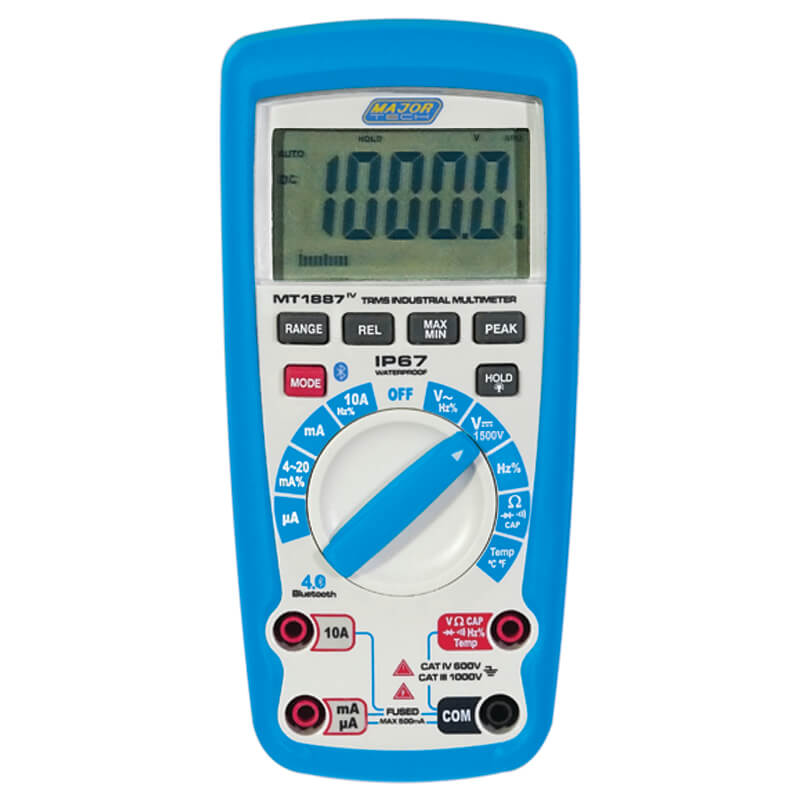

The MT1887 is a CAT IV 600V True RMS professional multimeter having improved measurement functions, troubleshooting feature, resolution and accuracy to solve problems on power distribution, motor drives, electromechanical equipment and plant automation with the 4-20mA% loop measurements. The meter has a large 40 000 count backlit LCD with the added advantage of a 41 segment analogue bargraph. NCV function, automatic Non-Contact voltage detection, the LCD backlight will glow red when AC voltage above 110V is sensed. Specially designed for the Solar Industry the DC voltage range measures up to 1500V DC, other measuring ranges include ACV to 1000V, Micro Amps and Amps, Frequency, Resistance, Duty Cycle, capacitance and temperature measurements. The Bluetooth function allows the user to transmit data to the Android or iOS mobile App for viewing, organising and sharing recordings. The meter has a double moulded rubber case with IP67 waterproof and dustproof rating, rugged design for heavy duty use.
Specifications:
| Function | Range | Resolution | Accuracy |
| DC voltage | 0.1mV – 1500V | 0.1mV | ± (0.1% + 6 Digits) |
| AC voltage | 0.1mV – 1000V | 0.1mV | ± (1% + 8 Digits) |
| DC Current | 0.01μA – 10A | 0.01μA | ± (1.0% + 3 Digits) |
| AC Current | 0.1μA – 10A | 0.1μA | ± (1.5% + 8 Digits) |
| Duty Cycle | 5.0% to 95.0% | 0,01% | ± (1.2% + 2 Digits) |
| Resistance | 0.01Ω – 40MΩ | 0.01Ω | ± (0.5% + 8 Digits) |
| Frequency | 0.001 Hz – 100MHz | 0.001Hz | ± (0.1% + 1 Digits) |
| 4-20mA% | 25% to 125% | 0,01% | ± (50 Digits) |
| Capacitance | 0.01nF – 40mF | 0.01nF | ± (2.5% + 10 Digits) |
| Temperature | -50 to 1000°C | 1°C | ± (1.0% + 2.5 Digits) |
| True RMS Measurements | Yes | ||
| AC Bandwidth | 50Hz to 1000Hz | ||
| Digital Display | 40000 | ||
| Bargraph | Yes | ||
| Bluetooth | Yes | ||
| Continuity | Yes | ||
| Diode test | Yes | ||
| Non-Contact Voltage (NCV) | Yes | ||
| Overrange indication | Yes | ||
| Input impedance | >10MΩ VDC & >3MΩ VAC | ||
| Min Max | Yes | ||
| Peak hold | >1mS | ||
| Data Hold | Yes | ||
| Enclosure | Double moulded waterproof IP67 | ||
| Low battery indication | Yes | ||
| Power source | 6LR61 | ||
| Weight | 342g | ||
| Dimensions | 187 x 81 x 50mm | ||
| Safety Specs | IEC61010-1 CatIV 600V | ||
Accessories:
- Temperature Probe
- 9V Battery
- Test Leads
- Instruction Manual
