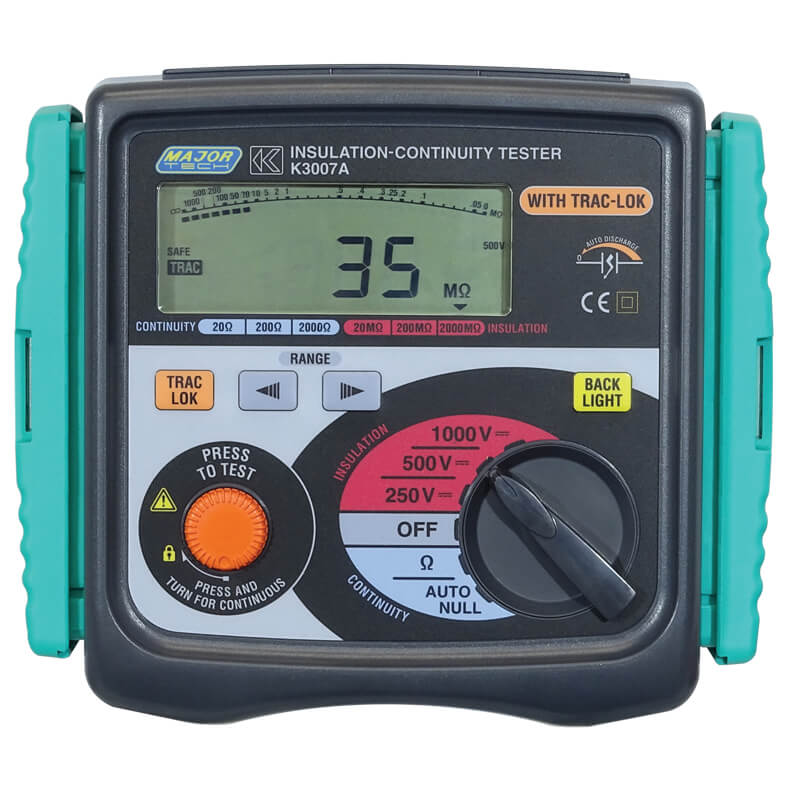

Major Tech’s range of insulation testers are ideal for mining, industry and electricians applications. The K3007IS has three test voltage ranges: 250V, 500V and 1000V and is equipped with a unique bargraph display that illustrates to the user that the insulation under test meets the minimum voltage required by the regulations. An advanced feature included in both models is Auto Null mode, this unique function subtracts the test lead resistance during continuity tests, ensuring repeatable accuracy. The top of the range K3007IS is equipped with Trac-Lok circuits that improve battery life considerably, thus saving the user money. Another great feature is the EL Backlight on the display which enables readings to be taken in dimly lit areas.
Specifications:
| Function | Range | Resolution | Accuracy |
| Insulation resistance 250V | 250V | 20MΩ | ±(1.5% +5) |
| Insulation resistance 500V | 500V | 200MΩ | ±(1.5% +5) |
| Insulation resistance 1000V | 1000V | 2000MΩ | ±(10% +3) |
| AC Voltage | 600V | 1V | ±(5.0% +3) |
| Resistance | 2000Ω | 0.01Ω | ±(1.5%+5) |
| Short Circuit Current | 1.5mA | ||
| Current measurement | 200mA | ||
| Continuity | Yes | ||
| Trac loc | Yes | ||
| Auto discharge | Yes | ||
| Digital Display | LCD Display | ||
| Bargraph | Yes | ||
| Over-range indication | Yes | ||
| Back Light | Yes | ||
| Enclosure | Moulded case IP54 | ||
| Low battery indication | Yes | ||
| Power source | 6 x R6 | ||
| Dimensions | 185 x 167 x 89mm | ||
| Weight | 900g | ||
Accessories:
- Pouch for leads
- AA batteries
- Test leads
- Instruction Manual
- Strap
- COC
