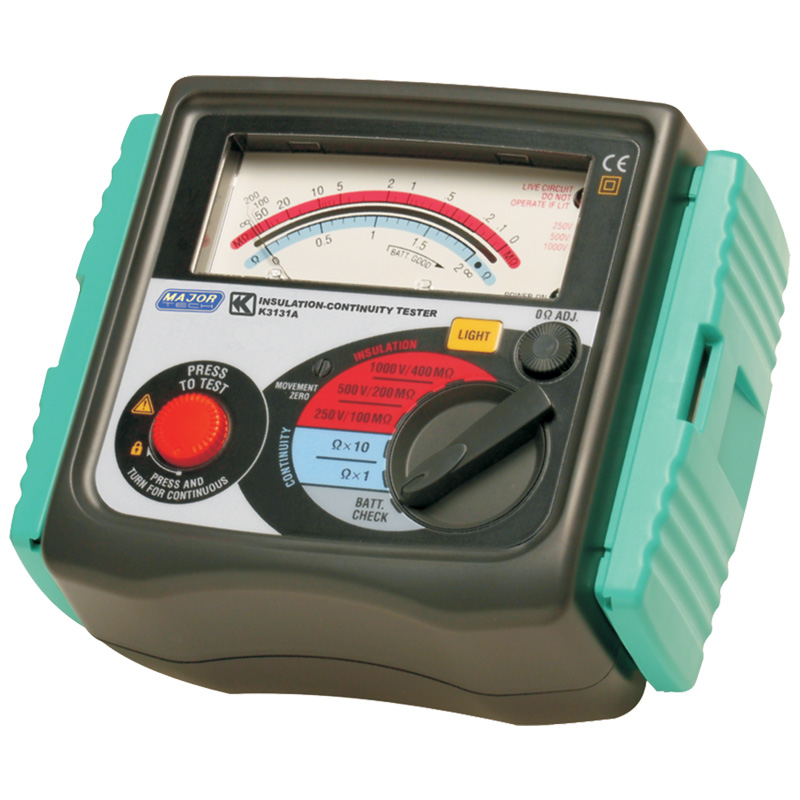

TThe K3131IS is Major Tech’s premier analogue Insulation and Continuity tester, designed to meet international standards of performance and safety. This model is a high powered, high quality instrument used by professionals to obtain accurate values of insulation and continuity resistance in accordance with SABS 0142 requirements. The K3131IS offers three insulation test ranges: 250V, 500V and 1000V and two continuity ranges, and is equipped with a clear, easy to read illuminated scale.
Specifications:
| Function | Range | Resolution | Accuracy |
| Insulation resistance 250V | 250V | 100MΩ | ±(0.1MΩ-10MΩ) |
| Insulation resistance 500V | 500V | 200MΩ | ±(0.2MΩ-20MΩ) |
| Insulation resistance 1000V | 1000V | 400MΩ | ±(0.4MΩ-40MΩ) |
| Resistance | 20Ω | 0.1Ω | ±( 3%) |
| Short Circuit Current | 1.3mA | ||
| Current measurement | 200mA | ||
| Auto discharge | Yes | ||
| Digital Display | Analogue Display | ||
| Over-range indication | Yes | ||
| Back Light | Yes | ||
| Enclosure | Moulded case IP54 | ||
| Low battery indication | Yes | ||
| Power source | 6 x R6 | ||
| Dimensions | 167 x 1185 x 89mm | ||
| Weight | 860g | ||
Accessories:
- Pouch for leads
- AA batteries
- Test leads
- Instruction Manual
- Strap
- COC
