Description
Details

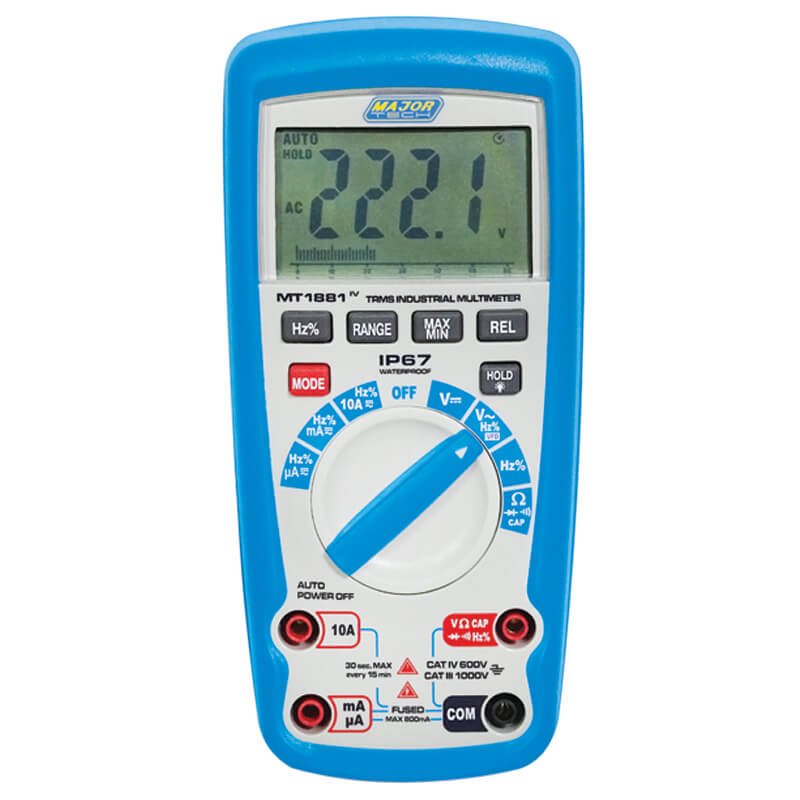

The MT1881IS is an Intrinsically Safe 1000V AC/DC IP67 True RMS Multimeter that has a large 6000 count backlit LCD with a 61 segment analogue bar graph, especially designed for everyday use by electricians. Capable of measuring 1000V AC and DC, with added measuring ranges of Resistance, AC/DC Current, Capacitance and Frequency. The meter has been designed that should a user turn the rotary switch in any direction whilst an input of less than 1000V AC/DC is applied to the meter, the meter will not get damaged. NCV function, automatic Non-Contact voltage detection, the LCD backlight will glow red when AC voltage above 110V is sensed. The meter has a double moulded rubber case with IP67 waterproof and dustproof rating, rugged design for heavy duty use.
Specifications:
| Function | Range | Resolution | Accuracy |
| DC voltage | 0.1mV – 1000V | 0.1mV | ± (0.5% + 5 Digits) |
| AC voltage | 1mV – 1000V | 1mV | ± (0.8% + 4 Digits) |
| DC Current | 0.1μA – 10A | 0.1μA | ± (1.0% + 3 Digits) |
| AC Current | 0.1μA – 10A | 0.1μA | ± (1.5% + 3 Digits) |
| AC voltage (VFD) | 50.0V – 600.0V | 0.1V | ± (4% + 9 Digits) |
| Duty Cycle | 0.1 to 99.90% | 0,10% | ± (1.2% + 2 Digits) |
| Resistance | 0.1Ω – 60.00MΩ | 0.1Ω | ± (0.8% + 2 Digits) |
| Frequency | 0.001Hz – 10.00MHz | 0.001Hz | ± (1.0% + 4 Digits) |
| Capacitance | 0.01nF – 60.00mF | 0.01nF | ± (4.0% + 5 Digits) |
| True RMS Measurements | Yes | ||
| AC Bandwidth | 50Hz to 400Hz | ||
| Digital Display | 6000 | ||
| Bargraph | Yes | ||
| Continuity | Yes | ||
| Diode test | Yes | ||
| Non Contact Voltage (NCV) | Yes | ||
| Overrange indication | Yes | ||
| Input impedance | >10MΩ VDC & >9MΩ VAC | ||
| Min Max | Yes | ||
| Data Hold | Yes | ||
| Enclosure | Double moulded waterproof IP67 | ||
| Low battery indication | Yes | ||
| Power source | 6LF22 | ||
| Weight | 342g | ||
| Dimensions | 187 x 81 x 51mm | ||
| Safety Specs | IEC61010-1 CatIV 600V | ||
Accessories:
- 9V Battery
- Test Leads
- Instruction Manual
