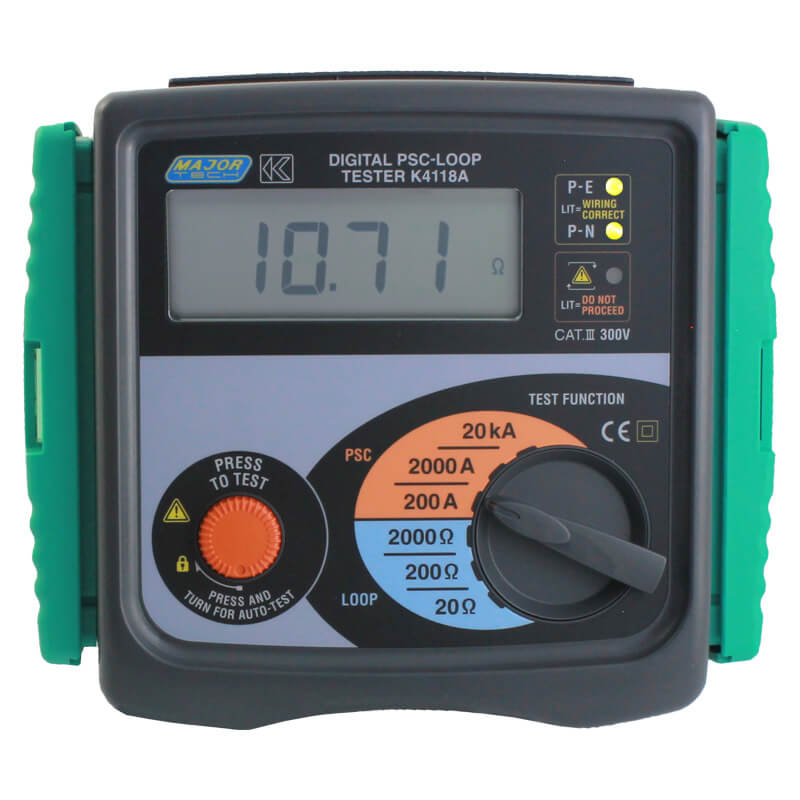

The K4118 is microprocessor controlled and includes useful features such as mains voltage measurements, neon indication of current wiring status and a lock down test button for hands-free operation. An added feature is a 200 ohm earth electrode resistance test range to check that the earth electrodes comply with the IEC wiring regulations. The K4118 Digital Earth Loop Impedance Tester is the most technologically advanced meter of such instruments available and is designed to comply with IEC 61557-1 regulations. This instrument offers convenient and accurate measurements of Earth Loop Impedance at the origin (Ze) and at various points throughout the electrical installation (Zs).
Specifications:
| Function | Range | Resolution | Accuracy |
| AC Current | 100mA/1000mA/10A/30A | 0.1mA | ± (1%+ 5 Digits) |
| Earth resistance | 20Ω/200Ω/600Ω/1200Ω | 0.01Ω | ± (2%+ 0.5 Digits) |
| Conductor size | 32mm | ||
| True RMS | AC Current | ||
| PC interface | Bluetooth interface | ||
| Display | LCD Display 2099 | ||
| Memory | 100 data points | ||
| Back light | Yes | ||
| Enclosure | Moulded case | ||
| Low battery indication | Yes | ||
| Power source | 4 x L6P | ||
| Weight | 750g | ||
| Dimensions | 185 x 167 x 89mm | ||
| Safety specs | IEC61010-1 CatIV 300V | ||
Accessories:
- Pouch for leads
- Test leads
- Instruction manual
- COC
