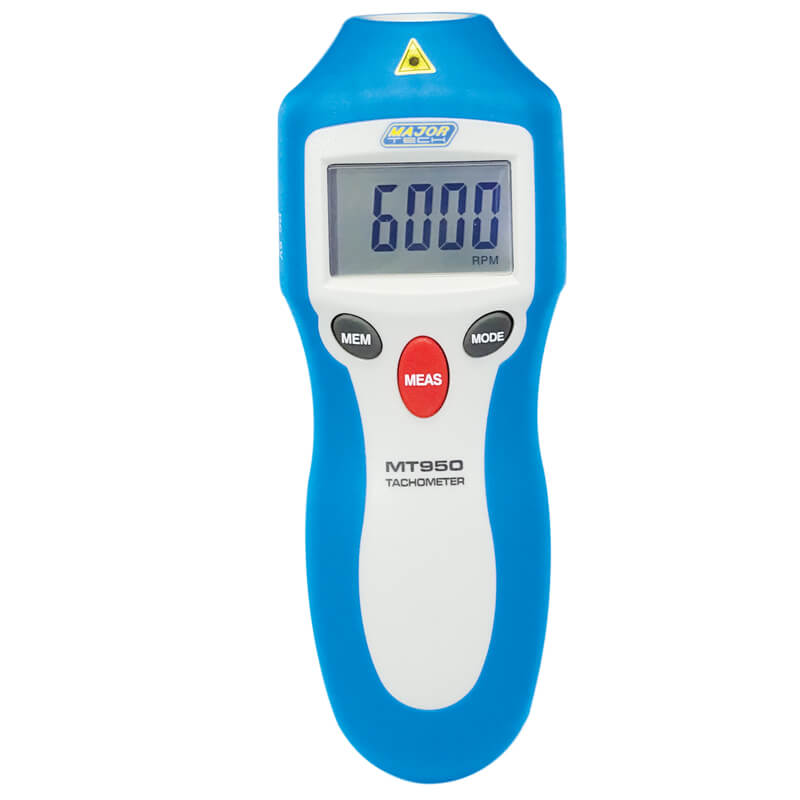

The MT950 Tachometer provides fast and accurate non-contact revolutionary measurements for rotating objects. Using reflective tape on an object to be measured, simply point the laser at the object, the tachometer RPM will then measure up to a maximum of 100,000 revolutions with an accuracy of ±0.05% and a fast sampling time of 0.5 seconds. This tachometer has a built-in memory that recalls the Min/Max and last value stored. The meter can also be used as a Total TOT counter where the meter can be set up to count passing objects. The MT950 is lightweight and easy to operate.
Specifications:
| Function | Range | Resolution | Accuracy |
| Non-Contact Test Range | 2 – 100 000 RPM | 0.1RPM | ± (0.05% + 1 Digit) |
| Count Range | 1 – 99 999 REV | ||
| Sampling Time | 0.5s (over 120RPM) | ||
| Detection Distance | 50mm – 500mm | ||
| Time Base | Quartz crystal | ||
| Digital Display | 5 Digit LCD | ||
| Overrange Indication | Yes | ||
| Min Max | Yes | ||
| Data Hold | Yes | ||
| Back Light | Yes | ||
| Enclosure | Over mould | ||
| Low Battery Indication | Yes | ||
| Batteries | 9V | ||
| Weight | 160g | ||
| Dimensions | 160 x 60 x 42mm | ||
Accessories:
- Carrying Case
- 3x MT905 – Reflective Tape
- 9V Battery
- Instruction Manual
