Description
Details

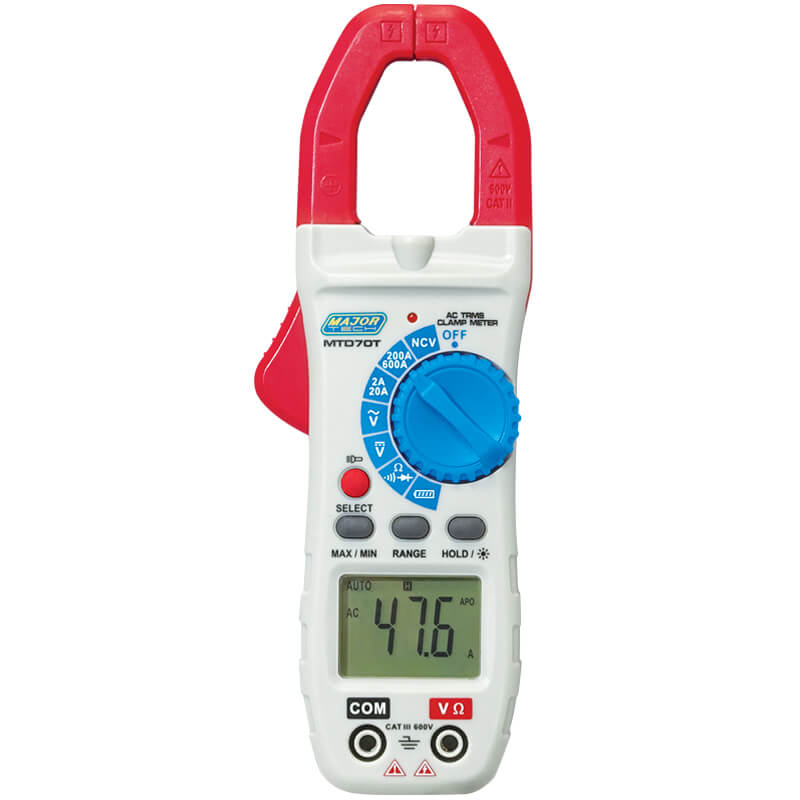

The MTD70T 600A True RMS AC Clamp Meter is a useful tool that allows you to safely test for electrical problems, motor’s condition and current on appliances. Equipped to test any electrical circuit without disconnecting any wires. Handy features include a backlit LCD display and flashlight for working in dimly lit areas. The NCV Non-Contact Voltage detector is useful for a quick check to see if voltage is present on circuit under test. It comes with a 28mm Jaw opening and measures 0.001A to 600A AC, DC and AC Volt, Resistance, Continuity buzzer and Diode Test.
Specifications:
| Function | Range |
| DC Voltage | 200mV – 600V |
| AC Voltage | 200mV – 600V |
| AC Current | 2.000A – 600A |
| Resistance | 200.0Ω – 20.00MΩ |
| True RMS Measurements | Yes |
| Continuity | Test current MAX. 1.5mA |
| Built-in buzzer | Yes |
| Diode test | Forward DCA is approx. 0.8mA, open circuit Voltage MAX. 2.2V |
| AC Bandwidth | 2KHZ |
| Digital Display | 2000 Count |
| Non Contact Voltage (NCV) | Yes |
| Overrange indication | Yes |
| Input impedance | 10M (VDC and VAC) |
| Data Hold | Yes |
| Back Light | Yes |
| Back Light | Yes |
| Low battery indication | Yes |
| Power source | 2 x 1.5V AAA Battery |
| Battery Life | Approx. 30h (backlight ON), Approx. 100h (backlight OFF) |
| Weight | 180g |
| Dimensions | 185 x 65 x 37mm |
| Safety Specs | IEC1010-1(2001): EN61010-2-030, EN61010-2-032, EN61010-2-033 |
Accessories:
- Carrying Case
- Test Leads
- Instruction Manual
