Description
Details

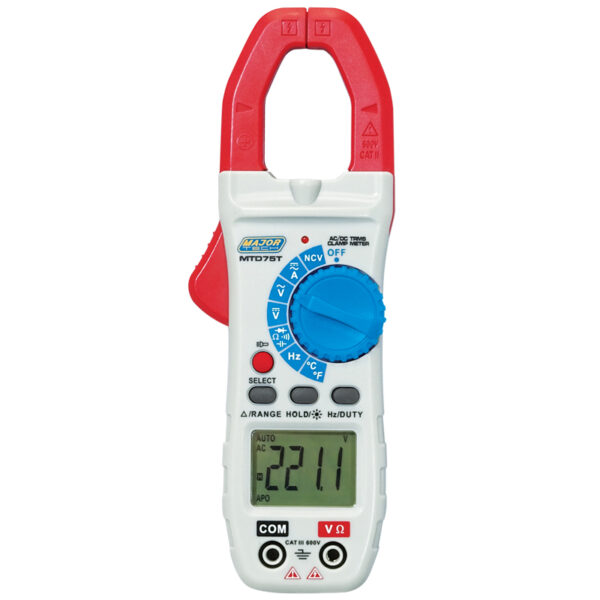

The MTD75T 800A AC/DC TRMS Clamp Meter is a useful tool that allows you to safely test for electrical problems, motor’s condition and current on appliances. Equipped to test any electrical circuit without disconnecting any wires. Handy function includes a backlit LCD display and Flashlight for working in dimly lit areas. The NCV Non-Contact Voltage detector is useful for a quick check to see it voltage is present on circuit under test. It has a 28mm Jaw opening and measures 0.01A to 800A AC & DC, 0.1mV to 600V AC/DC, Temperature, Capacitance, Frequency, Resistance, Continuity buzzer and Diode Test.
Specifications:
| Function | Range |
| DC Voltage | 600mV – 600V |
| AC Voltage | 6.00V-600V |
| DC Current | 0.00A – 800A |
| AC Current | 60.00 A-800A |
| Duty Cycle | Yes |
| Resistance | 600.0Ω – 60.00mΩ |
| Frequency | 10Hz-10MHz |
| Capacitance | 6nF-60mF |
| True RMS Measurements | Yes |
| Continuity | Open circuit Voltage MAX. 2V |
| Built-in buzzer | Yes |
| Diode test | Forward DCA is approx. 0.8mA, open circuit Voltage MAX. 2.2V |
| Digital Display | 6000 Count |
| Data Hold | Yes |
| Back Light | Yes |
| Back Light | Yes |
| Low battery indication | Yes |
| Power source | 2x 1.5V AAA battery |
Accessories:
- Carrying Case
- Test Leads
- Air Temperature Probes
- Instruction Manual
